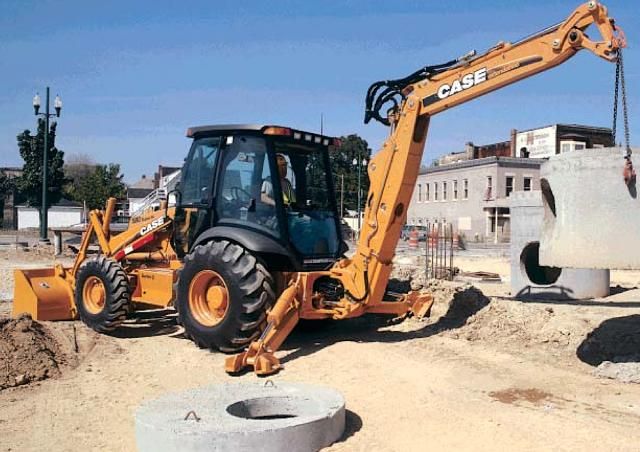

Case 580 Super M+
Browse All Case or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.17 ft in (3400 mm) |
| Reach From Swivel - Std | 18.08 ft in (5510 mm) |
| Dig Depth - Std | 14.42 ft in (4390 mm) |
| Reach At Load Height - Std | 8.75 ft in (2670 mm) |
| Load Height - Ext | 13.25 ft in (4040 mm) |
| Bucket Dig Force - Ext | 12821 lb (_ -) |
| Bucket Dig Force - Std | 12821 lb (_ -) |
| Dig Depth - Ext | 18.25 ft in (5560 mm) |
| Reach At Load Height - Ext | 11.5 ft in (3500 mm) |
| Load At Max Lift - Ext | 1350 lb (612 kg) |
| Load At Max Lift - Std | 2750 lb (1247 kg) |
| Reach From Swivel - Ext | 21.83 ft in (6650 mm) |
Dimensions
| Transport Length | 22.83 ft in (6950 mm) |
| Transport Width | 7.75 ft in (2360 mm) |
| Transport Height | 14.33 ft in (4360 mm) |
| Wheelbase | 7.04 ft in (2150 mm) |
| Ground Clearance | 1.21 ft in (366 mm) |
| Height To Top Of Suspended Cab | 8.92 ft in (2730 mm) |
Loader
| Clearance At Max Dump Height | 9.17 ft in (2800 mm) |
| Reach At Max Dump Height | 2.5 ft in (763 mm) |
| Dig Depth | 1.3 in (33 mm) |
| Bucket Breakout Force | 9164 lb (40.76 kN) |
| Bucket Width | 93 in (2360 mm) |
| Bucket Capacity | 1.07 yd3 (0.82 m3) |
| Lift Capacity At Full Height | 6182 lb (2804 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | Family III 445T/M2, Tier II certified |
| Gross Power | 95 hp (71 kw) |
| Net Power | 90 hp (67 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1500 rpm |
| Net Torque Rise | 29 % |
| Net Max Torque | 289 lb ft (392 Nm) |
| Aspiration | turbocharged |
| Displacement | 272 cu in (4.5 L) |
Operational
| Operating Weight 2wd | 14905 lb (6761 kg) |
| Fuel Capacity | 42 gal (159 L) |
| Max Weight | 18128 lb (8223 kg) |
| Hydraulic System Fluid Capacity | 31.5 gal (119 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 5.5 gal (20.8 L) |
| Front Axle Fluid Capacity | 2 gal (7.6 L) |
| Rear Axle Fluid Capacity | 3.8 gal (14.2 L) |
| Turning Radius | 11.3 ft in (3425 mm) |
| Tire Size Front - 2wd / 4wd | 14.5x16.1/12.5x16.5 |
| Rear Tires Size 2wd/4wd | 21Lx24/21Lx24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | 4-speed synchromesh with hydraulically actual clutches |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.5 mph (42.6 km/h) |
| Max Speed Reverse | 32 mph (51.5 km/h) |
Hydraulic
| Pump Type | Gear-type tandem, transmission driven |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
| Relief Valve Pressure | 3050 psi (- -) |
