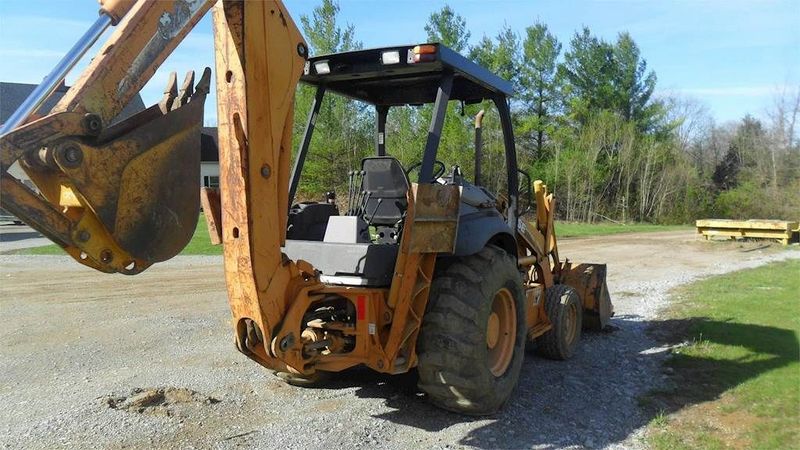

Case 580M TURBO
Browse All Case or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.17 ft in (3400 mm) |
| Reach From Swivel - Std | 17.83 ft in (5440 mm) |
| Dig Depth - Std | 14.25 ft in (4340 mm) |
| Reach At Load Height - Std | 8.75 ft in (2670 mm) |
| Load Height - Ext | 13.25 ft in (4040 mm) |
| Bucket Dig Force - Ext | 11212 lb (_ -) |
| Bucket Dig Force - Std | 11212 lb (_ -) |
| Dig Depth - Ext | 18.25 ft in (5560 mm) |
| Reach At Load Height - Ext | 11.5 ft in (3500 mm) |
| Load At Max Lift - Ext | 810 lb (367 kg) |
| Load At Max Lift - Std | 1950 lb (885 kg) |
| Reach From Swivel - Ext | 21.83 ft in (6650 mm) |
Dimensions
| Transport Length | 23.17 ft in (7070 mm) |
| Transport Width | 7.17 ft in (2180 mm) |
| Transport Height | 13.67 ft in (4170 mm) |
| Wheelbase | 7.04 ft in (2150 mm) |
| Ground Clearance | 1.24 ft in (376 mm) |
| Height To Top Of Suspended Cab | 8.92 ft in (2720 mm) |
Loader
| Clearance At Max Dump Height | 8.67 ft in (2640 mm) |
| Reach At Max Dump Height | 2.35 ft in (717 mm) |
| Dig Depth | 7.8 in (199 mm) |
| Bucket Breakout Force | 9164 lb (40.76 kN) |
| Bucket Width | 82 in (2.08 mm) |
| Bucket Capacity | 0.87 yd3 (0.67 m3) |
| Lift Capacity At Full Height | 6182 lb (2804 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | Family III 445T/M2, Tier II certified |
| Gross Power | 85 hp (63 kw) |
| Net Power | 80 hp (60 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Torque Rise | 33 % |
| Net Max Torque | 246 lb ft (334 Nm) |
| Aspiration | turbocharged |
| Displacement | 272 cu in (4.5 L) |
Operational
| Operating Weight 2wd | 13359 lb (6060 kg) |
| Fuel Capacity | 31.4 gal (119 L) |
| Max Weight | 16510 lb (7489 kg) |
| Hydraulic System Fluid Capacity | 28 gal (106 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 4.5 gal (16.8 L) |
| Transmission Fluid Capacity | 5.5 gal (20.8 L) |
| Front Axle Fluid Capacity | 1.5 gal (5.5 L) |
| Rear Axle Fluid Capacity | 3.8 gal (14.2 L) |
| Turning Radius | 21.3 ft in (6480 mm) |
| Tire Size Front - 2wd / 4wd | 11Lx16.1/12x16.5 |
| Rear Tires Size 2wd/4wd | 17.5Lx24/19.5Lx24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | 4-speed synchromesh with hydraulically actuated clutches |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.5 mph (39.5 km/h) |
| Max Speed Reverse | 29.7 mph (47.8 km/h) |
Hydraulic
| Pump Type | gear-type, transmission driven |
| Pump Flow Capacity | 28.5 gal/min (108 L/min) |
| Relief Valve Pressure | 3050 psi (- -) |
