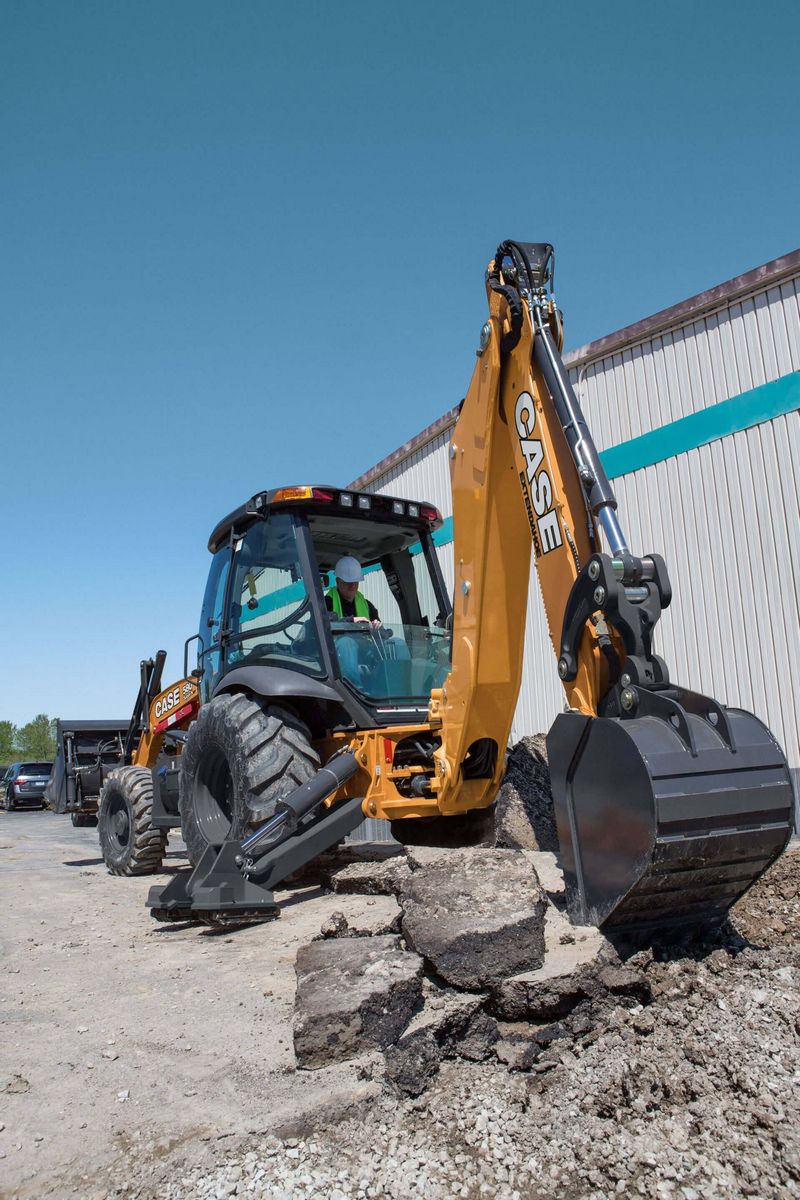

Case 580 Super N WT
Browse All Case or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.01 ft in (3660 mm) |
| Reach From Swivel - Std | 18.25 ft in (5560 mm) |
| Dig Depth - Std | 14.54 ft in (4430 mm) |
| Reach At Load Height - Std | 4.66 ft in (1420 mm) |
| Reach From Swivel - Ext | 21.66 ft in (6600 mm) |
| Load Height - Ext | 14.38 ft in (4380 mm) |
| Reach At Load Height - Ext | 7.29 ft in (2220 mm) |
| Dig Depth - Ext | 17.98 ft in (5480 mm) |
Dimensions
| Transport Length | 23.33 ft in (7110 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 11.06 ft in (3370 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Ground Clearance | 1.24 ft in (377 mm) |
| Operating Weight | 20646 Ibs (9365) kg (4WD) |
| Height To Top Of Suspended Cab | 8.96 ft in (2730 mm) |
| Turning Radius | 11.98 ft in (3650 mm) |
Loader
| Clearance At Max Dump Height | 8.96 ft in (2730 mm) |
| Reach At Max Dump Height | 2.25 ft in (685 mm) |
| Dig Depth | 6.15 in (156 mm) |
| Bucket Capacity | 1.03 yd3 (0.79 m3) |
| Bucket Width | 82 in (2082.81 mm) |
Engine
| Emissions Certification | Tier 4 Final |
| Fan | 9 blade viscous suction, Ration - 1.4:1 |
| Radiator Core Type | Square wave |
| Horsepower - Gross | 96.6 hp (72 kw) |
| Horsepower -Net | 95.3 hp (71 kw) |
| Battery | 850 cold-cranking amps |
| Number Of Cylinders | 4 |
| Max Speed | 23 mph (37.1 km/h) |
| Engine Make | 2239 |
| Engine Model | FPT F5BFL413B |
| Net Power | 95 hp (70.9 kw) |
| Gross Power | 97 hp (72.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 334.2 lb ft (453 Nm) |
| Torque Measured @ | 1400 rpm |
| Net Torque Rise | 45 % |
| Net Max Torque | 334.2 lb ft (453 Nm) |
| Aspiration | Turbocharged |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.4 in (110 mm) |
| Alternator | 160 amps |
Capacities
| Front Axle | 524.9 cu in (8.6 L) |
| Engine Oil With Filter | 2.2 gal (8 L) |
| Fuel Tank | 34.9 gal (132 L) |
| Diesel Exhaust Fluid (Def) Tank | 3.6 gal (13.5 L) |
| Cooling System | 4.8 gal (18 L) |
| Rear Axle | 5 gal (18.6 L) |
Operational
| Arm Breakout Force | 11449 lb (51 kN) |
| Operating Weight 4wd | 19985 lb (9065.1 kg) |
| Fuel Capacity | 42.1 gal (159 L) |
| Hydraulic System Fluid Capacity | 31.5 gal (119.2 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle Fluid Capacity | 2.1 gal (7.7 L) |
| Rear Axle Fluid Capacity | 3.6 gal (13.6 L) |
| Turning Radius | 11 ft in (3352.8 mm) |
| Tire Size Front - 2wd / 4wd | 12.5/80 x 18 |
| Rear Tires Size 2wd/4wd | 21L x 24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Performance
| Loader Bucket Heaped Capacity | 1.3 yd3 (1 m3) |
| Dipper Stick Digging Force | 8657 lb (38.6 kN) |
| Boom Lift - Maximum Reach - Retracted Dipper | 2837.4 lb (1287 kg) |
| Dipper Stick Lift Capacity | 5822.5 lb (2641 kg) |
| Bucket Digging Force (Iso) | 112.3 lb (50.9 kg) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24 mph (38.7 km/h) |
| Max Speed Reverse | 16 mph (25.8 km/h) |
Tires
| Front | 12.5 / 80 - 18 (4WD) |
| Rear | 21L - 24 (4WD) |
Hydraulic
| Pump Type | Variable Displacement Axial Piston |
| Pump Flow Capacity | 40 gal/min (151.5 L/min) |
| Relief Valve Pressure | 3450 psi (23786.9 kPa) |
Brakes
| Service Brake | Wet Multi Disc |
