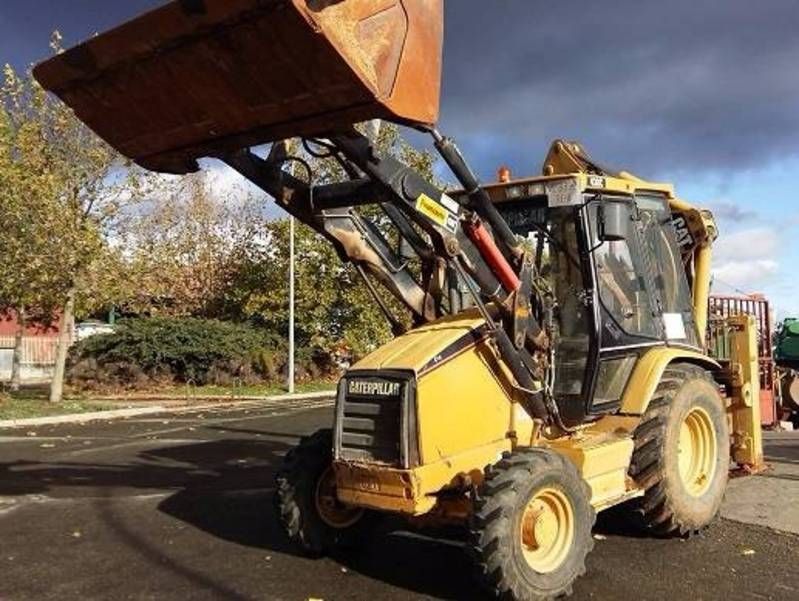

Caterpillar 438C
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.09 ft in (3684 mm) |
| Reach From Swivel - Std | 18.74 ft in (5711 mm) |
| Dig Depth - Std | 15.99 ft in (4873 mm) |
| Reach At Load Height - Std | 5.45 ft in (1660 mm) |
| Dig Depth - Ext | 19.44 ft in (5924 mm) |
| Reach At Load Height - Ext | 8.52 ft in (2596 mm) |
| Reach From Swivel - Ext | 22.17 ft in (6756 mm) |
| Load Height - Ext | 14.26 ft in (4344 mm) |
Dimensions
| Transport Length | 18.84 ft in (5740 mm) |
| Transport Width | 7.87 ft in (2396 mm) |
| Transport Height | 12.36 ft in (3765 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.1 ft in (335 mm) |
| Height To Top Of Suspended Cab | 9.52 ft in (2900 mm) |
Loader
| Clearance At Max Dump Height | 8.72 ft in (2655 mm) |
| Reach At Max Dump Height | 2.56 ft in (780 mm) |
| Dig Depth | 1.58 in (40 mm) |
| Bucket Width | 94.34 in (2396 mm) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Breakout Force | 11330.37 lb (50.4 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054 |
| Gross Power | 89 hp (66.4 kw) |
| Net Power | 85 hp (63.4 kw) |
| Power Measured @ | 2200 rpm |
| Net Torque Rise | 24.1 % |
| Aspiration | Turbocharged |
| Displacement | 244.1 cu in (4 L) |
Operational
| Fuel Capacity | 33.9 gal (128 L) |
| Operating Weight 4wd | 16667 lb (7560 kg) |
| Hydraulic System Fluid Capacity | 20.9 gal (79 L) |
| Oil System Fluid Capacity | 2 gal (7.3 L) |
| Cooling System Fluid Capacity | 5.8 gal (21.6 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Front Axle Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle Fluid Capacity | 6.4 gal (24 L) |
| Turning Radius | 26.6 ft in (8090 mm) |
| Tire Size Front - 2wd / 4wd | 335/80 x R18 |
| Rear Tires Size 2wd/4wd | 16.9 x R28 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 52 amps |
Transmission
| Transmission Type | Power Shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.6 mph (31.6 km/h) |
| Max Speed Reverse | 19.6 mph (31.6 km/h) |
Hydraulic
| Pump Type | Piston |
| Pump Flow Capacity | 42.8 gal/min (162 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
