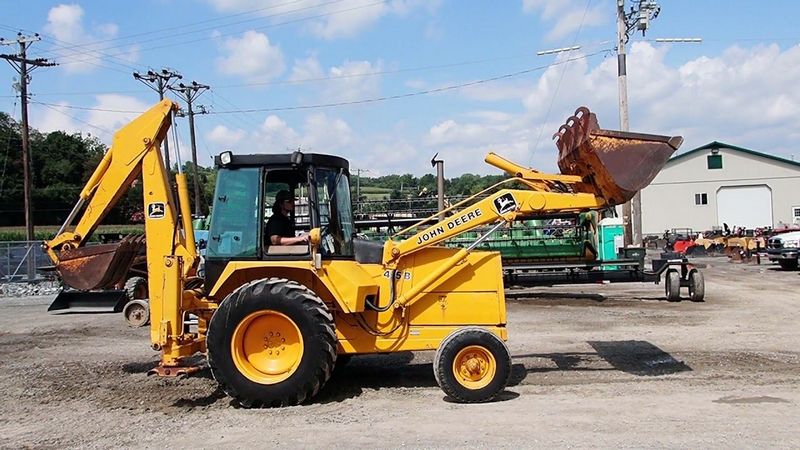

John Deere 415B
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Height To Top Of Suspended Cab | 8.67 ft in (2640 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 68 hp (50.8 kw) |
| Power Measured @ | 2500 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 170 lb ft (230.5 Nm) |
| Aspiration | Naturally aspirated |
| Displacement | 239 cu in (4 L) |
Operational
| Fuel Capacity | 23 gal (87 L) |
| Max Weight | 16000 lb (7225 kg) |
| Hydraulic System Fluid Capacity | 19 gal (72 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 3.5 gal (13.2 L) |
| Turning Radius | 11.7 ft in (3550 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16 F3 |
| Rear Tires Size 2wd/4wd | 19.5L-24 R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | 4-speed with first and second collar shift, third and fourth synchronized with hydraulic server |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
Hydraulic
| Pump Type | Close-center |
| Pump Flow Capacity | 23 gal/min (87 L/min) |
| Relief Valve Pressure | 3200 psi (18630 kPa) |
