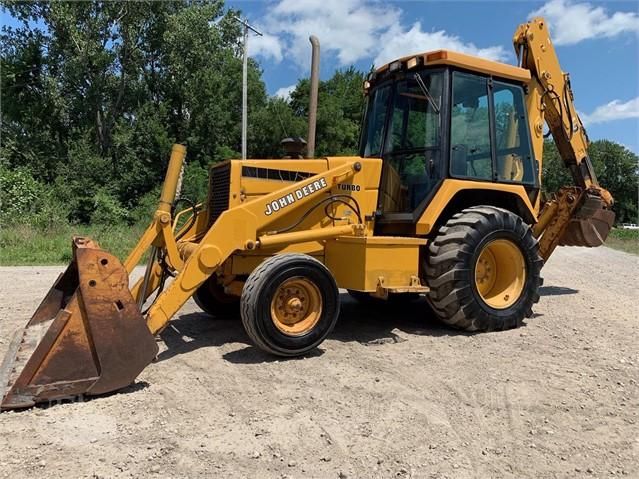

John Deere 510D
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.58 ft in (3840 mm) |
| Reach From Swivel - Std | 19.93 ft in (6070 mm) |
| Dig Depth - Std | 16.68 ft in (5070 mm) |
| Reach At Load Height - Std | 23.67 ft in (7210 mm) |
| Load Height - Ext | 15 ft in (4580 mm) |
| Bucket Dig Force - Ext | 11230 lb (5093.85 kg) |
| Bucket Dig Force - Std | 11100 lb (5034.88 kg) |
| Dig Depth - Ext | 20.83 ft in (6340 mm) |
| Reach At Load Height - Ext | 27.67 ft in (8430 mm) |
| Load At Max Lift - Ext | 3616 lb (1639 kg) |
| Load At Max Lift - Std | 6780 lb (3074 kg) |
| Reach From Swivel - Ext | 23.92 ft in (7290 mm) |
Dimensions
| Transport Length | 23.33 ft in (7110 mm) |
| Transport Width | 7.68 ft in (2340 mm) |
| Transport Height | 12.58 ft in (3840 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Suspended Cab | 9.17 ft in (2800 mm) |
Loader
| Clearance At Max Dump Height | 8.75 ft in (2670 mm) |
| Reach At Max Dump Height | 2.43 ft in (739 mm) |
| Dig Depth | 4 in (100 mm) |
| Bucket Breakout Force | 9900 lb (44 kN) |
| Bucket Width | 92 in (2340 mm) |
| Bucket Capacity | 1.62 yd3 (1.24 m3) |
| Lift Capacity At Full Height | 7300 lb (3310 kg) |
Engine
| Engine Make | 2240 |
| Engine Model | 4045T |
| Net Power | 95 hp (71 kw) |
| Gross Power | 100 hp (75 kw) |
| Power Measured @ | 2200 rpm |
| Net Torque Rise | 25 % |
| Net Max Torque | 268 lb ft (363 Nm) |
| Aspiration | Turbocharged |
| Displacement | 276 cu in (4.6 L) |
Operational
| Fuel Capacity | 34 gal (129 L) |
| Max Weight | 16000 lb (7260 kg) |
| Hydraulic System Fluid Capacity | 21 gal (79 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 21 gal (79 L) |
| Turning Radius | 11.7 ft in (3550 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16,12PR F3 |
| Rear Tires Size 2wd/4wd | 19.5L-24,12PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | 4-speed helical gear, synchronized in all four gears, collar shift transmission with hydraulic reverser |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.7 mph (32.7 km/h) |
| Max Speed Reverse | 22.6 mph (36.4 km/h) |
Hydraulic
| Pump Type | Radial pistons |
| Pump Flow Capacity | 35 gal/min (133 L/min) |
| Relief Valve Pressure | 2755 psi (19000 kPa) |
