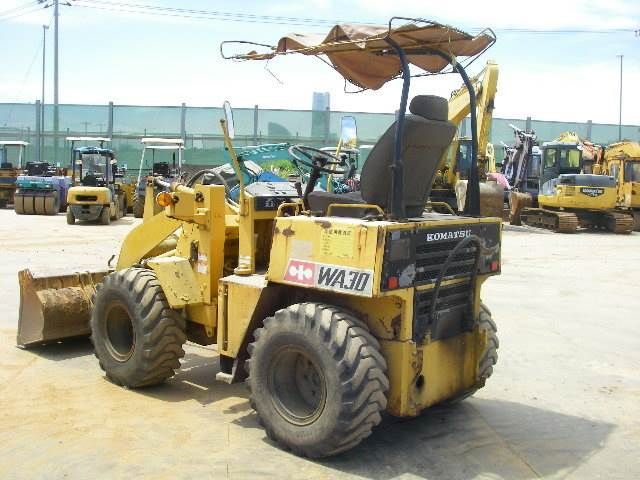

Komatsu WA30-1
Browse All Komatsu or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 6.5 ft in (1980 mm) |
| Reach From Swivel - Std | 11.14 ft in (3395 mm) |
| Dig Depth - Std | 8.32 ft in (2535 mm) |
| Bucket Dig Force - Std | 4144.7 lb (1880 kg) |
Dimensions
| Transport Length | 13.67 ft in (4165 mm) |
| Transport Width | 4.93 ft in (1500 mm) |
| Transport Height | 6.44 ft in (1960 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
Loader
| Clearance At Max Dump Height | 6.57 ft in (2000 mm) |
| Reach At Max Dump Height | 2.3 ft in (700 mm) |
| Bucket Width | 61.82 in (1570 mm) |
| Bucket Capacity | 0.45 yd3 (0.34 m3) |
| Bucket Breakout Force | 5140 lb (22.8 kN) |
Engine
| Engine Make | 2238 |
| Engine Model | 2D94-2 |
| Gross Power | 26.2 hp (19.6 kw) |
| Displacement | 89.7 cu in (1.5 L) |
Operational
| Operating Weight 2wd | 6812.3 lb (3090 kg) |
| Fuel Capacity | 8 gal (30 L) |
| Cooling System Fluid Capacity | 2.5 gal (9.2 L) |
| Turning Radius | 12 ft in (3630 mm) |
| Tire Size Front - 2wd / 4wd | 33x12.5-15-6PR (L-2) |
| Rear Tires Size 2wd/4wd | 33x12.5-15-6PR (L-2) |
Transmission
| Transmission Type | planetary gear |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed Reverse | 9.4 mph (15 km/h) |
