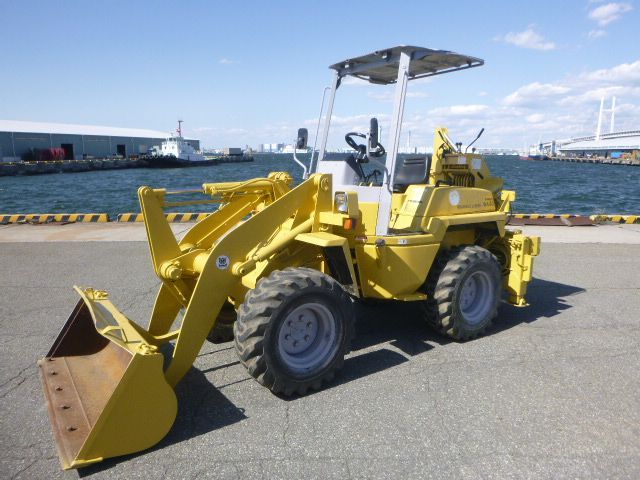

Komatsu WA30-5
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7 ft in (2140 mm) |
| Bucket Capacity - Heaped | 0.52 yd3 (0.4 m3) |
| Bucket Width | 5.17 ft in (1575 mm) |
| Breakout Force | 5950 lb (2700 kN) |
Dimensions
| Ground Clearance | 0.88 ft in (270 mm) |
| Length With Bucket On Ground | 13.25 ft in (4030 mm) |
| Width Over Tires | 4.92 ft in (1495 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Wheelbase | 5.75 ft in (1750 mm) |
| Hinge Pin - Max Height | 8.83 ft in (2680 mm) |
| Reach At Max Lift And Dump | 2.58 ft in (785 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | 3D84E-3B |
| Gross Power | 29 hp (21.3 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 91 cu in (1.5 L) |
| Aspiration | Natural |
Operational
| Fuel Capacity | 11.9 gal (42 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28 L) |
| Cooling System Fluid Capacity | 1.3 gal (5.5 L) |
| Front Axle/Diff Fluid Capacity | 1.4 gal (9.3 L) |
| Rear Axle/Diff Fluid Capacity | 1.4 gal (9.3 L) |
| Static Tipping Weight | 4285 lb (1948 kg) |
| Turning Radius | 10.5 ft in (3210 mm) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 9.3 mph (15 km/h) |
| Max Speed - Reverse | 9.3 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (- -) |
| Raise Time | 4.6 sec |
| Dump Time | 1 sec |
| Lower Time | 2.8 sec |
