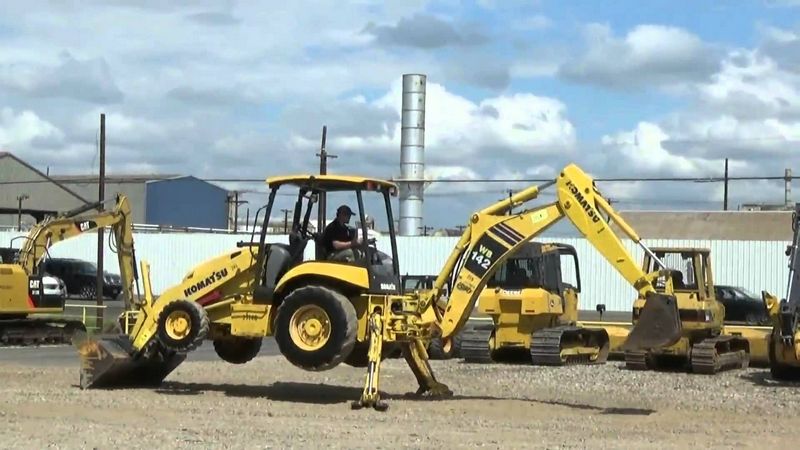

Komatsu WB142-5
Browse All Komatsu or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.82 ft in (3600 mm) |
| Reach From Swivel - Std | 18.31 ft in (5580 mm) |
| Dig Depth - Std | 14.17 ft in (4318 mm) |
| Load At Max Lift - Std | 2976.25 lb (1350 kg) |
Dimensions
| Transport Length | 23.17 ft in (7060 mm) |
| Transport Width | 7.16 ft in (2180 mm) |
| Transport Height | 12.01 ft in (3660 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Suspended Cab | 9.26 ft in (2820 mm) |
Loader
| Clearance At Max Dump Height | 8.58 ft in (2615 mm) |
| Reach At Max Dump Height | 2.99 ft in (910 mm) |
| Dig Depth | 3.94 in (100 mm) |
| Lift Capacity At Full Height | 6327.27 lb (2870 kg) |
| Bucket Capacity | 1.01 yd3 (0.77 m3) |
| Bucket Width | 85.83 in (2180 mm) |
| Bucket Breakout Force | 11351 lb (50.5 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D102LE-2 |
| Net Power | 76.5 hp (57 kw) |
| Gross Power | 80.5 hp (60 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 221 lb ft (299.7 Nm) |
| Aspiration | Naturally |
| Displacement | 275 cu in (4.6 L) |
Operational
| Operating Weight 2wd | 14517.5 lb (6585 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Operating Weight 4wd | 14517.5 lb (6585 kg) |
| Hydraulic System Fluid Capacity | 25.7 gal (97 L) |
| Oil System Fluid Capacity | 2.4 gal (9 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Front Axle Fluid Capacity | 1.9 gal (7 L) |
| Rear Axle Fluid Capacity | 3.9 gal (14.5 L) |
| Turning Radius | 11.9 ft in (3600 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | synchronized gearbox, powershift shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed Reverse | 23 mph (37 km/h) |
Hydraulic
| Pump Type | Tandem fixed displacement pumps |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Relief Valve Pressure | 3002 psi (20698.1 kPa) |
