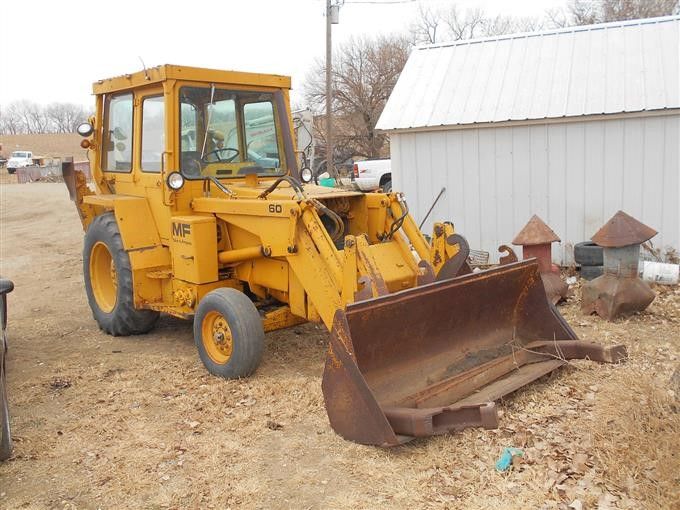

Massey Ferguson 60TL
Browse All Massey Ferguson or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.44 ft in (3790 mm) |
| Reach From Swivel - Std | 18.87 ft in (5750 mm) |
| Dig Depth - Std | 15.46 ft in (4710 mm) |
| Bucket Dig Force - Std | 10998.87 lb (4989 kg) |
| Dig Depth - Ext | 19.39 ft in (5910 mm) |
Dimensions
| Transport Length | 24.09 ft in (7340 mm) |
| Transport Width | 7.16 ft in (2180 mm) |
| Height To Top Of Suspended Cab | 8.83 ft in (2690 mm) |
| Shipping Weight | 13999.36 lb (6350 kg) |
Loader
| Clearance At Max Dump Height | 8.99 ft in (2740 mm) |
| Reach At Max Dump Height | 2.5 ft in (760 mm) |
| Lift Capacity At Full Height | 5200 lb (2358.69 kg) |
| Bucket Capacity | 1 yd3 (0.77 m3) |
| Bucket Breakout Force | 9000 lb (40.04 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | AD4.236 |
| Net Power | 68 hp (50.8 kw) |
| Displacement | 238 cu in (3.9 L) |
| Bore | 3.9 in (98 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Max Weight | 13999.4 lb (6350 kg) |
| Tire Size Front - 2wd / 4wd | 11x16 |
| Rear Tires Size 2wd/4wd | 19.5x24 |
Transmission
| Transmission Type | Torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
Hydraulic
| Pump Type | Closed center load sensing |
