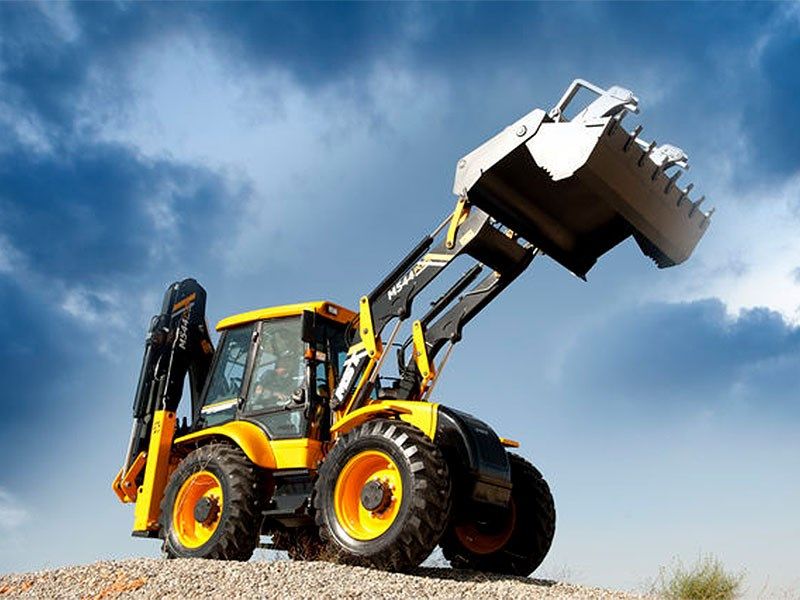

MST M544
Browse All MST or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12 ft in (3657 mm) |
| Reach From Swivel - Std | 22.22 ft in (6770 mm) |
| Dig Depth - Std | 17.74 ft in (5406 mm) |
| Load At Max Lift - Ext | 3538.42 lb (1605 kg) |
| Bucket Dig Force - Std | 10560.15 lb (4790 kg) |
| Load Height - Ext | 14.17 ft in (4316 mm) |
| Load At Max Lift - Std | 4607.67 lb (2090 kg) |
Dimensions
| Transport Length | 18.55 ft in (5652 mm) |
| Transport Width | 7.88 ft in (2400 mm) |
| Transport Height | 12.3 ft in (3749 mm) |
| Wheelbase | 7.44 ft in (2265 mm) |
| Ground Clearance | 1.57 ft in (478 mm) |
| Height To Top Of Suspended Cab | 10 ft in (3048 mm) |
Loader
| Clearance At Max Dump Height | 8.54 ft in (2602 mm) |
| Reach At Max Dump Height | 3.12 ft in (950 mm) |
| Dig Depth | 5.99 in (152 mm) |
| Bucket Breakout Force | 17173.84 lb (76.4 kN) |
| Bucket Capacity | 1.44 yd3 (1.11 m3) |
| Lift Capacity At Full Height | 8928.73 lb (4050 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 99 hp (73.9 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1350 rpm |
| Net Max Torque | 306.1 lb ft (415 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight 2wd | 19290.5 lb (8750 kg) |
| Fuel Capacity | 27.8 gal (105 L) |
| Hydraulic System Fluid Capacity | 40.2 gal (152 L) |
| Oil System Fluid Capacity | 2.2 gal (8 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Front Axle Fluid Capacity | 2.3 gal (8.5 L) |
| Rear Axle Fluid Capacity | 3.5 gal (13 L) |
| Turning Radius | 17.3 ft in (5270 mm) |
| Tire Size Front - 2wd / 4wd | 16.9 x 14x28, 12 ply |
| Rear Tires Size 2wd/4wd | 16.9 x 14x28, 12 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Auto Powershift, low speed gearbox |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
Hydraulic
| Pump Type | Helical gear type tandem pump |
| Pump Flow Capacity | 41 gal/min (155 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
