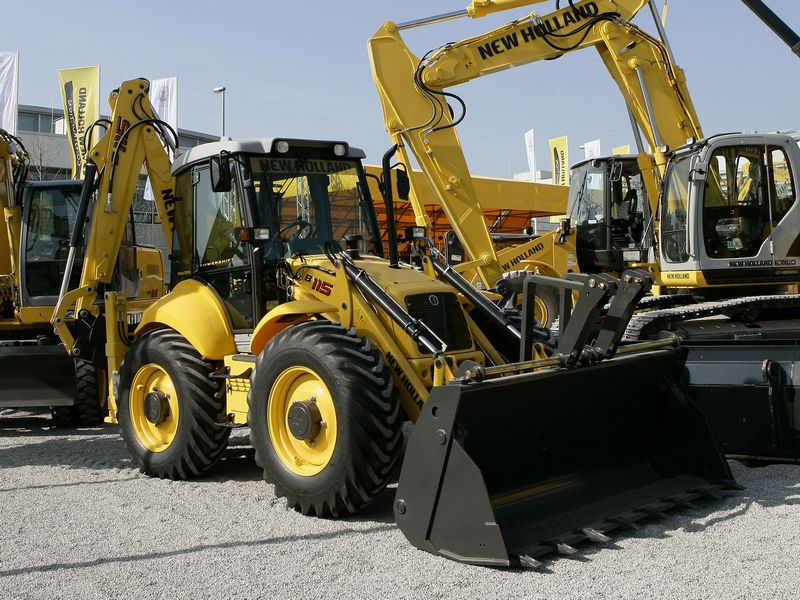

New Holland B115
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.5 ft in (3810 mm) |
| Reach From Swivel - Std | 19.18 ft in (5843.02 mm) |
| Dig Depth - Std | 15.25 ft in (4648.2 mm) |
| Reach At Load Height - Std | 6.67 ft in (2033.02 mm) |
| Load Height - Ext | 14.67 ft in (4470 mm) |
| Bucket Dig Force - Ext | 12808.86 lb (5810 kg) |
| Bucket Dig Force - Std | 12808 lb (5809.62 kg) |
| Dig Depth - Ext | 19 ft in (5790 mm) |
| Reach At Load Height - Ext | 9.91 ft in (3020 mm) |
| Load At Max Lift - Ext | 1205 lb (546.58 kg) |
| Load At Max Lift - Std | 2215 lb (1004.71 kg) |
| Reach From Swivel - Ext | 22.74 ft in (6930 mm) |
Dimensions
| Transport Length | 23.36 ft in (7120 mm) |
| Transport Width | 7.88 ft in (2400 mm) |
| Transport Height | 13.01 ft in (3965 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Suspended Cab | 9.52 ft in (2900 mm) |
Loader
| Clearance At Max Dump Height | 8.75 ft in (2666 mm) |
| Reach At Max Dump Height | 2.61 ft in (795 mm) |
| Dig Depth | 6.07 in (154 mm) |
| Bucket Breakout Force | 12165 lb (54.12 kN) |
| Bucket Width | 94.49 in (2400 mm) |
| Bucket Capacity | 1.48 yd3 (1.13 m3) |
| Lift Capacity At Full Height | 7464.86 lb (3386 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2249 |
| Engine Model | 445T/M2 |
| Net Power | 107.3 hp (80 kw) |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 293.6 lb ft (398 Nm) |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Operating Weight 2wd | 16755 lb (7600 kg) |
| Operating Weight 4wd | 17491 lb (7933.8 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Max Weight | 18088 lb (8204.6 kg) |
| Hydraulic System Fluid Capacity | 31.2 gal (118 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Tire Size Front - 2wd / 4wd | 16.9-24 |
| Rear Tires Size 2wd/4wd | 16.9-24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.4 mph (39.2 km/h) |
| Max Speed Reverse | 8.3 mph (13.2 km/h) |
Hydraulic
| Pump Type | Dual Gear |
| Pump Flow Capacity | 42.1 gal/min (159 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
