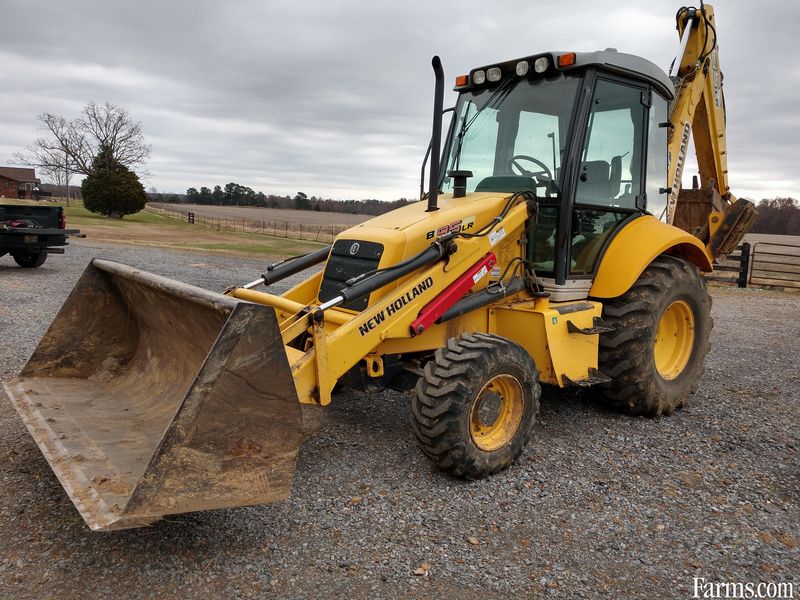

New Holland B95LR
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.83 ft in (3910 mm) |
| Reach From Swivel - Std | 19.17 ft in (5843 mm) |
| Dig Depth - Std | 15.01 ft in (4575 mm) |
| Reach At Load Height - Std | 19.17 ft in (5843 mm) |
| Bucket Dig Force - Std | 12808.86 lb (5810 kg) |
| Bucket Dig Force - Ext | 12808.86 lb (5810 kg) |
| Reach From Swivel - Ext | 22.73 ft in (6928 mm) |
| Dig Depth - Ext | 18.9 ft in (5758 mm) |
| Reach At Load Height - Ext | 22.73 ft in (6928 mm) |
| Load Height - Ext | 15.19 ft in (4628 mm) |
Dimensions
| Transport Length | 23.22 ft in (7075 mm) |
| Transport Width | 7.42 ft in (2261 mm) |
| Transport Height | 13.01 ft in (3965 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.3 ft in (394 mm) |
| Height To Top Of Suspended Cab | 9.47 ft in (2885 mm) |
Loader
| Clearance At Max Dump Height | 8.9 ft in (2710 mm) |
| Reach At Max Dump Height | 2.61 ft in (795 mm) |
| Dig Depth | 130 in (3302 mm) |
| Lift Capacity At Full Height | 7943.26 lb (3603 kg) |
| Bucket Capacity | 0.96 yd3 (0.73 m3) |
| Bucket Width | 87.21 in (2215 mm) |
| Bucket Breakout Force | 15057 lb (66.98 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2249 |
| Engine Model | 445T/M2 |
| Net Power | 89 hp (66 kw) |
| Gross Power | 95 hp (71 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 293.6 lb ft (398 Nm) |
| Aspiration | Turbocharged |
| Displacement | 273 cu in (4.5 L) |
Operational
| Operating Weight 2wd | 14460 lb (6559 kg) |
| Operating Weight 4wd | 14846 lb (6734.1 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Max Weight | 16655 lb (7554.6 kg) |
| Hydraulic System Fluid Capacity | 31.2 gal (118 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Tire Size Front - 2wd / 4wd | 12-16.5 |
| Rear Tires Size 2wd/4wd | 19.5L-24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | Power-Reversing/Torque Conv |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
Hydraulic
| Pump Type | Dual Gear |
| Pump Flow Capacity | 40 gal/min (151 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
