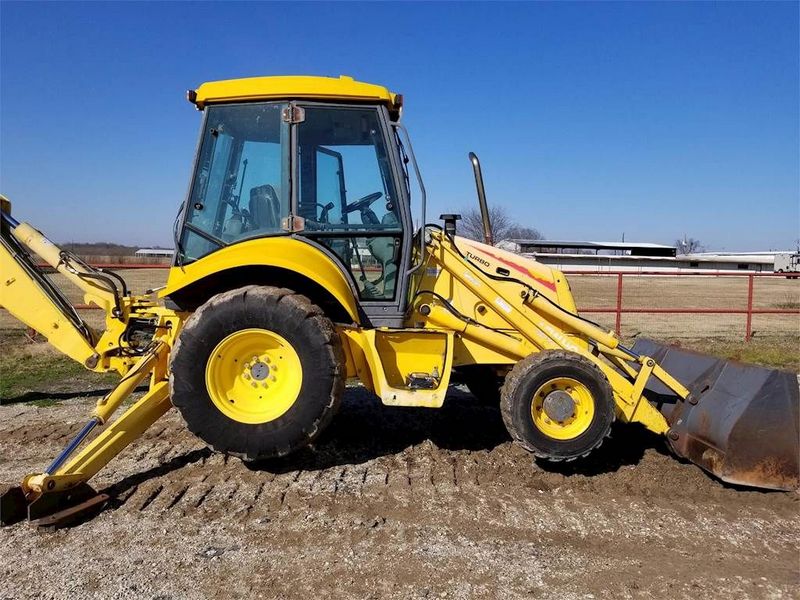

New Holland LB75.B
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.16 ft in (3705 mm) |
| Reach From Swivel - Std | 18.18 ft in (5539 mm) |
| Dig Depth - Std | 13.99 ft in (4262 mm) |
| Reach At Load Height - Std | 5.53 ft in (1683 mm) |
| Dig Depth - Ext | 17.93 ft in (5464 mm) |
| Bucket Dig Force - Ext | 12808.86 lb (5810 kg) |
| Bucket Dig Force - Std | 12808.86 lb (5810 kg) |
| Reach At Load Height - Ext | 8.82 ft in (2687 mm) |
| Reach From Swivel - Ext | 21.83 ft in (6651 mm) |
| Load Height - Ext | 14.61 ft in (4453 mm) |
Dimensions
| Transport Length | 23.22 ft in (7075 mm) |
| Transport Width | 10.59 ft in (3226 mm) |
| Transport Height | 13.09 ft in (3988 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.3 ft in (394 mm) |
| Height To Top Of Suspended Cab | 9.47 ft in (2885 mm) |
Loader
| Clearance At Max Dump Height | 8.9 ft in (2710 mm) |
| Reach At Max Dump Height | 2.61 ft in (795 mm) |
| Bucket Breakout Force | 13942 lb (62.02 kN) |
| Bucket Width | 88.59 in (2250 mm) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Lift Capacity At Full Height | 7780.12 lb (3529 kg) |
Engine
| Engine Make | 2249 |
| Engine Model | 445T/M2 |
| Gross Power | 95 hp (70.9 kw) |
| Net Power | 89 hp (66.4 kw) |
| Net Max Torque | 294 lb ft (398.7 Nm) |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Operating Weight 4wd | 31834.8 lb (14440 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 31.2 gal (118 L) |
| Oil System Fluid Capacity | 3.6 gal (13.6 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Tire Size Front - 2wd / 4wd | 12-16.5 |
| Rear Tires Size 2wd/4wd | 19.5L-24 |
| Alternator Supplied Amperage | 90 amps |
Transmission
| Transmission Type | Power-reversing/torque conv |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.1 mph (32.2 km/h) |
| Max Speed Reverse | 20.1 mph (32.2 km/h) |
Hydraulic
| Pump Type | dual gear |
| Pump Flow Capacity | 40 gal/min (151.5 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
