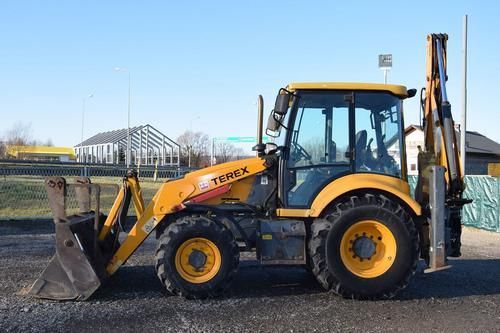

Terex 880SX
Browse All Terex or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.77 ft in (3586 mm) |
| Reach From Swivel - Std | 18.79 ft in (5726 mm) |
| Dig Depth - Std | 14.57 ft in (4438 mm) |
| Reach At Load Height - Std | 6.55 ft in (1996 mm) |
| Bucket Dig Force - Std | 11596.32 lb (5260 kg) |
| Bucket Dig Force - Ext | 11596.32 lb (5260 kg) |
| Reach From Swivel - Ext | 23.03 ft in (7017 mm) |
| Dig Depth - Ext | 18.97 ft in (5782 mm) |
| Reach At Load Height - Ext | 9.6 ft in (2924 mm) |
| Load Height - Ext | 14.98 ft in (4564 mm) |
Dimensions
| Transport Length | 24.08 ft in (7338 mm) |
| Transport Width | 7.59 ft in (2311 mm) |
| Transport Height | 12.35 ft in (3762 mm) |
| Wheelbase | 6.99 ft in (2130 mm) |
| Ground Clearance | 1.49 ft in (453 mm) |
| Height To Top Of Suspended Cab | 9.09 ft in (2770 mm) |
Loader
| Clearance At Max Dump Height | 8.74 ft in (2662 mm) |
| Reach At Max Dump Height | 2.12 ft in (645 mm) |
| Dig Depth | 4.85 in (123 mm) |
| Lift Capacity At Full Height | 8783 lb (3983.91 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 90.99 in (2311 mm) |
| Bucket Breakout Force | 12291 lb (54.68 kN) |
Engine
| Engine Model | 1104C-44T |
| Net Power | 94 hp (70.1 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 305 lb ft (413.6 Nm) |
| Displacement | 269 cu in (4.5 L) |
Operational
| Fuel Capacity | 34.4 gal (130 L) |
| Max Weight | 16214 lb (7354.6 kg) |
| Hydraulic System Fluid Capacity | 37.8 gal (143 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 4 gal (15 L) |
| Front Axle Fluid Capacity | 3.4 gal (12.5 L) |
| Rear Axle Fluid Capacity | 4.7 gal (17.5 L) |
| Turning Radius | 13 ft in (3950 mm) |
| Tire Size Front - 2wd / 4wd | 16/70x20 |
| Rear Tires Size 2wd/4wd | 18.4x26 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
Transmission
| Transmission Type | Syncrho shuttle gearbox |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed Reverse | 25.8 mph (41.5 km/h) |
Hydraulic
| Pump Type | twin gear |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Relief Valve Pressure | 3250 psi (22408 kPa) |
