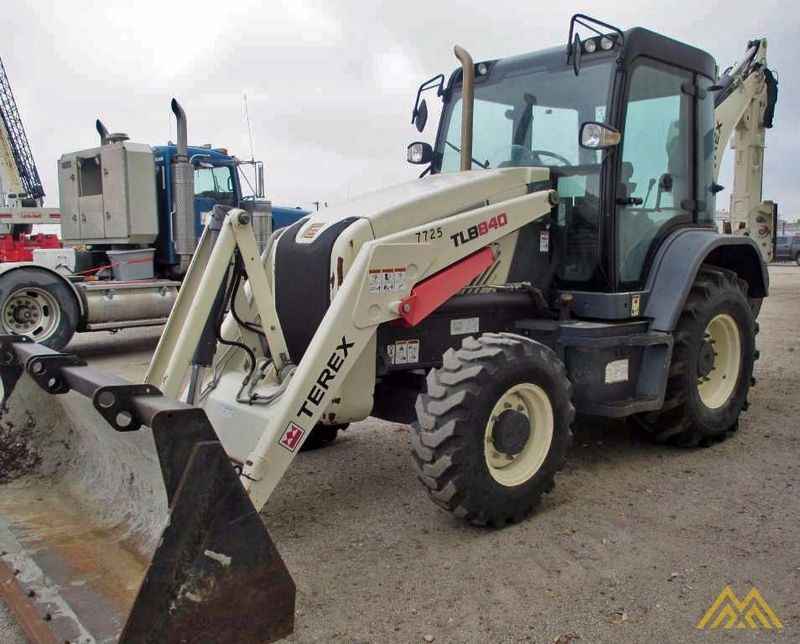

Terex TLB840R
Browse All Terex or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.55 ft in (3518 mm) |
| Reach From Swivel - Std | 18.76 ft in (5718 mm) |
| Dig Depth - Std | 16.38 ft in (4990 mm) |
| Reach At Load Height - Std | 7.49 ft in (2280 mm) |
| Arm Breakout Force (Iso 6015) | 10329 lb (4685.16 kg) |
| Dig Depth - Ext | 18.08 ft in (5510 mm) |
| Load Height - Ext | 13.52 ft in (4119 mm) |
| Reach At Load Height - Ext | 10.24 ft in (3120 mm) |
| Reach From Swivel - Ext | 21.92 ft in (6679 mm) |
Dimensions
| Transport Length | 19.67 ft in (5994 mm) |
| Transport Width | 7.58 ft in (2310 mm) |
| Transport Height | 11.1 ft in (3383.28 mm) |
| Wheelbase | 7 ft in (2133 mm) |
| Ground Clearance | 1.34 ft in (406 mm) |
| Height To Top Of Suspended Cab | 8.97 ft in (2734 mm) |
Loader
| Clearance At Max Dump Height | 8.92 ft in (2716 mm) |
| Reach At Max Dump Height | 2.56 ft in (779 mm) |
| Dig Depth | 7.05 in (179 mm) |
| Bucket Breakout Force | 9441 lb (42 kN) |
| Bucket Capacity | 1 yd3 (0.77 m3) |
| Lift Capacity At Full Height | 7291 lb (3307.15 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 74 hp (55.2 kw) |
| Net Power | 69.3 hp (51.7 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Torque Rise | 63 % |
| Net Max Torque | 288 lb ft (390.5 Nm) |
| Displacement | 219.7 cu in (3.6 L) |
Operational
| Fuel Capacity | 37 gal (140.1 L) |
| Max Weight | 16788 lb (7615 kg) |
| Hydraulic System Fluid Capacity | 18.5 gal (70.1 L) |
| Oil System Fluid Capacity | 2.2 gal (8 L) |
| Cooling System Fluid Capacity | 4.5 gal (17.1 L) |
| Transmission Fluid Capacity | 5.3 gal (20.1 L) |
| Front Axle Fluid Capacity | 2.3 gal (8.6 L) |
| Rear Axle Fluid Capacity | 4.5 gal (17.1 L) |
| Tire Size Front - 2wd / 4wd | 12 * 16.5 |
| Rear Tires Size 2wd/4wd | 19.5 * 24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24 mph (38.7 km/h) |
| Max Speed Reverse | 23.7 mph (38 km/h) |
Hydraulic
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
