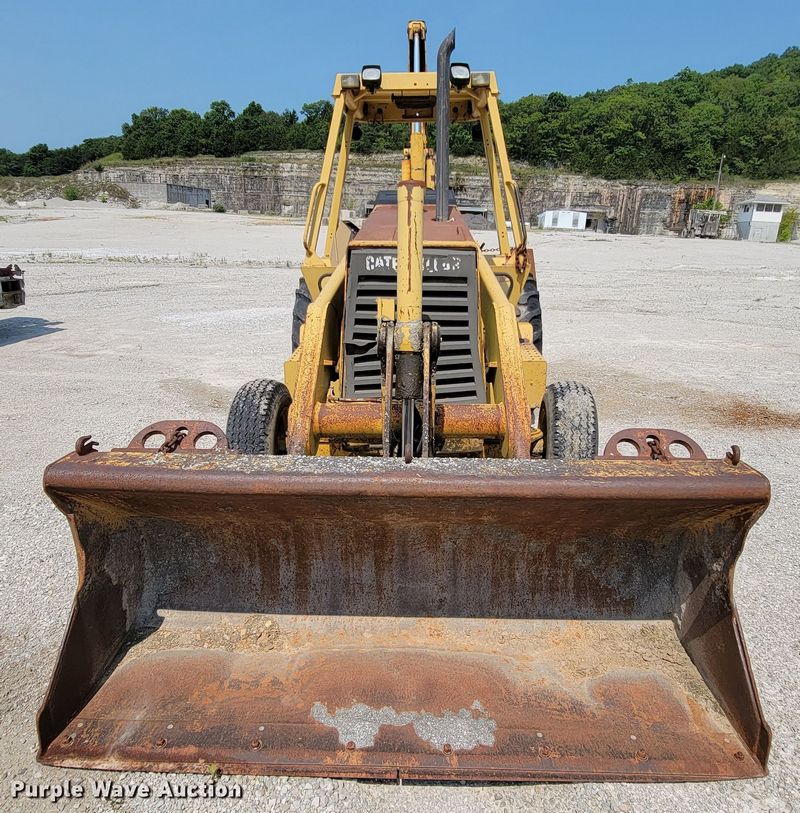

Caterpillar 436 Series II
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.45 ft in (3794 mm) |
| Reach From Swivel - Std | 19.85 ft in (6048 mm) |
| Dig Depth - Std | 17.88 ft in (5447 mm) |
| Bucket Dig Force - Std | 11003 lb (4990.88 kg) |
| Bucket Dig Force - Ext | 10823 lb (4909.24 kg) |
| Reach From Swivel - Ext | 23.36 ft in (7119 mm) |
| Load At Max Lift - Std | 3483.31 lb (1580 kg) |
| Load At Max Lift - Ext | 2248.72 lb (1020 kg) |
| Dig Depth - Ext | 21.37 ft in (6513 mm) |
| Load Height - Ext | 14.3 ft in (4357 mm) |
Dimensions
| Transport Length | 23.28 ft in (7094 mm) |
| Transport Width | 7.43 ft in (2262 mm) |
| Transport Height | 12.5 ft in (3810 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.16 ft in (352 mm) |
| Height To Top Of Suspended Cab | 9.12 ft in (2779 mm) |
Loader
| Clearance At Max Dump Height | 8.6 ft in (2621 mm) |
| Reach At Max Dump Height | 2.55 ft in (777 mm) |
| Dig Depth | 3.27 in (83 mm) |
| Lift Capacity At Full Height | 5260.23 lb (2386 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 89.06 in (2262 mm) |
| Bucket Breakout Force | 7890.8 lb (35.1 kN) |
Engine
| Engine Make | 2351 |
| Engine Model | 4.236 |
| Net Power | 77 hp (57.5 kw) |
| Gross Power | 83 hp (61.9 kw) |
| Displacement | 235.6 cu in (3.9 L) |
Operational
| Operating Weight 2wd | 15163.4 lb (6878 kg) |
| Turning Radius | 12.9 ft in (3905 mm) |
| Tire Size Front - 2wd / 4wd | 11-16 12PR/10.5-20 10PR |
| Rear Tires Size 2wd/4wd | 16.9-28 10PR/16.9-28 10 PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.5 mph (29.7 km/h) |
| Max Speed Reverse | 18.6 mph (29.8 km/h) |
Hydraulic
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
| Relief Valve Pressure | 2700 psi (18615.9 kPa) |
