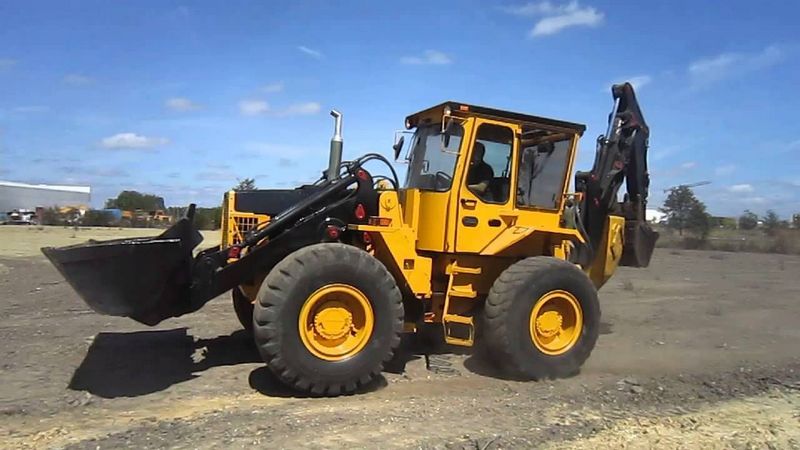

Volvo BM 6300
Browse All Volvo BM or Loader Backhoe Models
Contents:
Backhoe
| Reach From Swivel - Std | 20.9 ft in (6370 mm) |
| Dig Depth - Std | 15.2 ft in (4630 mm) |
| Bucket Dig Force - Std | 9280 lb (4209.34 kg) |
| Reach From Swivel - Ext | 24.02 ft in (7320 mm) |
| Bucket Dig Force - Ext | 6880 lb (3120.72 kg) |
| Dig Depth - Ext | 18.51 ft in (5640 mm) |
Dimensions
| Transport Length | 26.58 ft in (8100 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 13.62 ft in (4150 mm) |
| Wheelbase | 8.24 ft in (2510 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Suspended Cab | 10.11 ft in (3080 mm) |
Loader
| Clearance At Max Dump Height | 9.22 ft in (2810 mm) |
| Reach At Max Dump Height | 2.89 ft in (880 mm) |
| Dig Depth | 29.14 in (740 mm) |
| Bucket Capacity | 1.9 yd3 (1.45 m3) |
| Bucket Breakout Force | 16160 lb (71.91 kN) |
| Bucket Width | 98.43 in (2500 mm) |
| Lift Capacity At Full Height | 7420 lb (3365.66 kg) |
Engine
| Engine Make | 2244 |
| Engine Model | BM TD 45 B |
| Gross Power | 112.7 hp (84 kw) |
| Net Power | 104.6 hp (78 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 313.5 lb ft (425 Nm) |
| Aspiration | turbocharged |
| Displacement | 273.4 cu in (4.5 L) |
Operational
| Fuel Capacity | 51.6 gal (195 L) |
| Operating Weight 4wd | 23810 lb (10800.1 kg) |
| Hydraulic System Fluid Capacity | 54.5 gal (206 L) |
| Oil System Fluid Capacity | 3.2 gal (12 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Axle Fluid Capacity | 6.9 gal (26 L) |
| Rear Axle Fluid Capacity | 6 gal (22.5 L) |
| Turning Radius | 8.5 ft in (2565 mm) |
| Tire Size Front - 2wd / 4wd | 18.4-30/14 SGL |
| Rear Tires Size 2wd/4wd | 18.4-30/14 SGL |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
Transmission
| Transmission Type | Volvo BM HT 90 automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 27.4 mph (44 km/h) |
| Max Speed Reverse | 15.9 mph (25.5 km/h) |
Hydraulic
| Pump Type | two axial-flow piston pumps |
| Pump Flow Capacity | 45 gal/min (170 L/min) |
| Relief Valve Pressure | 3263 psi (22497.6 kPa) |
