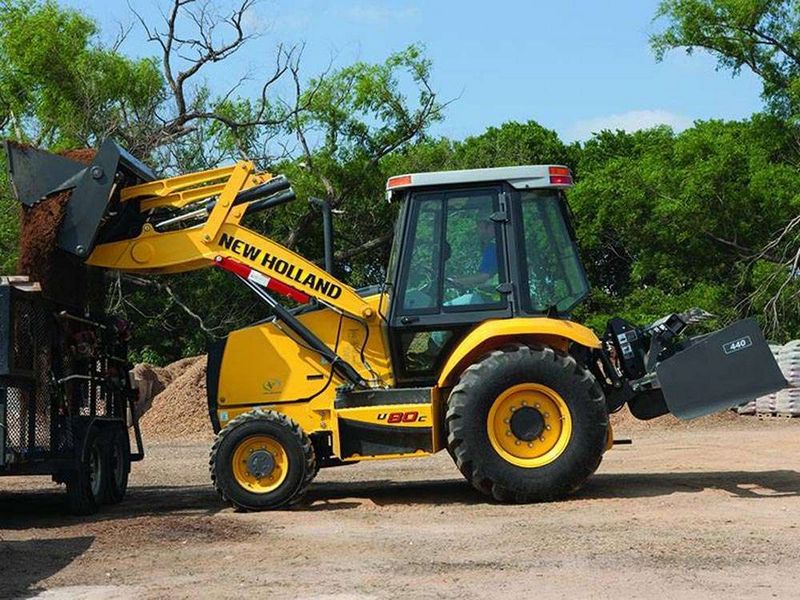

New Holland U80C
Browse All New Holland or MFWD Tractor Models
Contents:
Dimensions
| Breakout Force, Lift Cylinders | 8766 lb (3976.2 kg) |
| Breakpout Force, Dump Cylinders | 10325 lb (4683.35 kg) |
| Bucket Hinge Pin @ Sae Carry | 1.22 ft in (0.37 m) |
| Bucket Hinge Pin Fully Raised | 11.19 ft in (3.41 m) |
| Clam Open | 8.63 ft in (2.63 m) |
| Dump Angle | 46 |
| Dump Clearance @ Full Height, 45° Dump: Bucket | 8.9 ft in (2.71 m) |
| Dump Reach @ Full Height, 45° Dump: Bucket | 2.17 ft in (0.66 m) |
| Ground Clearance At Front Axle | 0.92 ft in (0.29 m) |
| Height | 19.5 L x 24 Tires - 17.5 L x 24 Tires |
| Lift Capacity To Full Height | 6536.71 lb (2965 kg) |
| Moldboard Height | 0.01 ft in (0.93 mm) |
| Overall Length With 3-Point Hitch | 16.7 ft in (5.09 m) |
| Reach From Front Axle Centerline – Bucket On Ground | 6.01 ft in (1.83 m) |
| Top Of Canopy | 8.76 ft in (2.67 m) |
| Wheelbase 2wd | 2.14 in (54.36 mm) |
| Wheelbase 4wd | 2.14 in (54.36 mm) |
| Width Over Tyres | 82 in (2082.81 mm) |
Engine
| Horsepower, Net-Sae J1349 | 68.4 hp (51 kw) |
| Horsepower Per Sae J1349 Gross | 73.8 hp (55 kw) |
| Engine Model | F5HFL463D*F005 |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 4.4 in (110 mm) |
Power Train
| Differential-Lock | On the go push-button activation |
| Travel Speeds Forward 1 | 3.8 mph (6.1 km/h) |
| Travel Speeds Forward 2 | 6.1 mph (9.8 km/h) |
| Travel Speeds Forward 3 | 12.9 mph (20.6 km/h) |
| Travel Speeds Forward 4 | 24 mph (38.6 km/h) |
Weights
| Base Unit* With Added Options | 10916 lb (4951.5 kg) |
| Cab | 646 lb (293.1 kg) |
| 4wd | 218 lb (98.9 kg) |
| Counterweight | 3000 lb (1360.8 kg) |
| Counterweight Rear | 500 lb (226.8 kg) |
| Counterweight Front | 440 lb (199.6 kg) |
| Box Scraper | 1592 lb (722.2 kg) |
| 4-In-1 Bucket | 717 lb (325.3 kg) |
