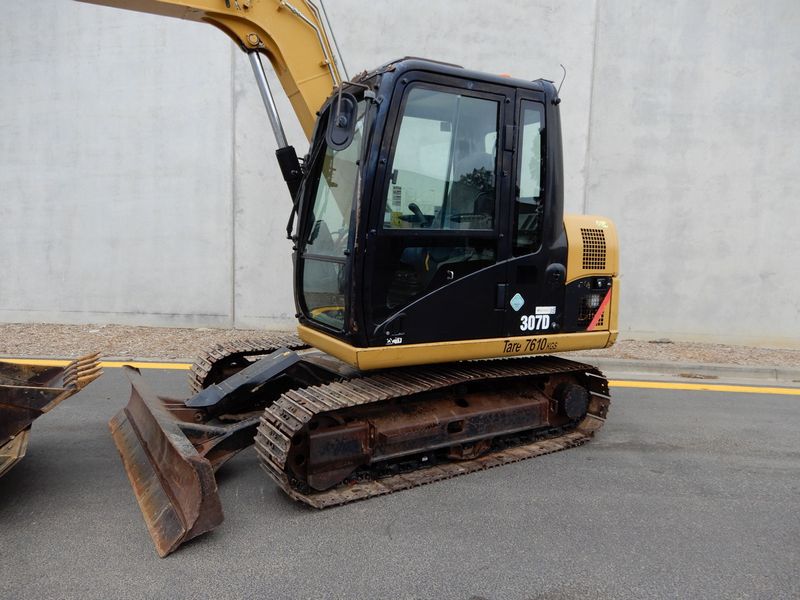

Caterpillar 307D
Browse All Caterpillar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.71 ft in (5700 mm) |
| Shipping Height Of Unit | 8.63 ft in (2630 mm) |
| Max Cutting Height | 23.73 ft in (7230 mm) |
| Max Loading Height | 17.1 ft in (5210 mm) |
| Max Reach Along Ground | 20.18 ft in (6150 mm) |
| Max Vertical Wall Digging Depth | 11.95 ft in (3640 mm) |
| Max Digging Depth | 13.29 ft in (4050 mm) |
| Boom/Stick Option (Hex) 1 | Standard stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 18.8 ft in (5730 mm) |
| Shipping Height Of Unit | 8.63 ft in (2630 mm) |
| Max Cutting Height | 25.07 ft in (7640 mm) |
| Max Loading Height | 18.41 ft in (5610 mm) |
| Max Reach Along Ground | 21.89 ft in (6670 mm) |
| Max Digging Depth | 15.1 ft in (4600 mm) |
| Max Vertical Wall Digging Depth | 13.69 ft in (4170 mm) |
| Boom/Stick Option (Hex) 2 | Long stick |
Dimensions
| Width To Outside Of Tracks | 7.52 ft in (2290 mm) |
| Length Of Track On Ground | 6.96 ft in (2120 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.63 ft in (2630 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.04 ft in (1840 mm) |
| Max Travel Speed | 1.19 mph (1.9 km/h) |
Engine
| Engine Make | 2251 |
| Engine Model | 4M40 TL |
| Gross Power | 57.7 hp (43 kw) |
| Net Power | 55.7 hp (41.5 kw) |
| Displacement | 172.7 cu in (2.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 15597.8 lb (7075 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Cooling System Fluid Capacity | 4.2 gal (15.7 L) |
| Hydraulic System Fluid Capacity | 24.9 gal (94 L) |
| Engine Oil Capacity | 3.4 gal (12.5 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 4641 psi (31998.6 kPa) |
| Hydraulic Pump Flow Capacity | 71.9 gal/min (272 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
