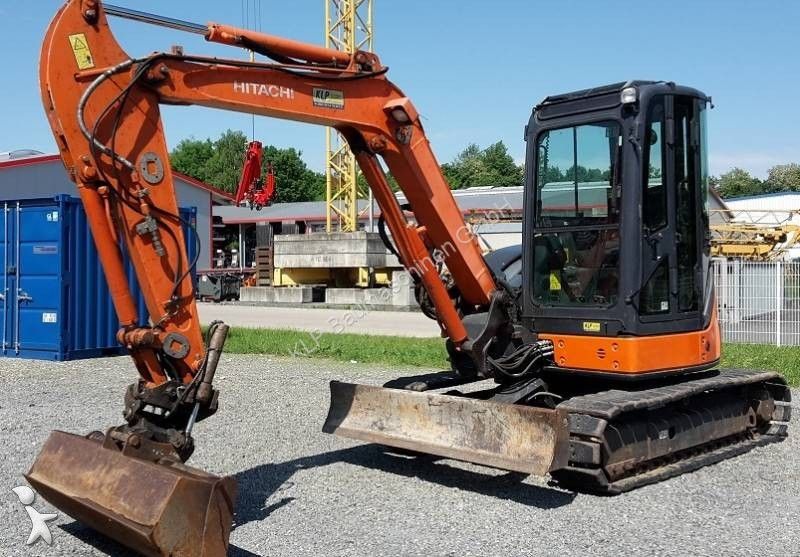

Hitachi ZX50U-2
Browse All Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.92 ft in (5460 mm) |
| Shipping Height Of Unit | 8.24 ft in (2510 mm) |
| Max Cutting Height | 18.94 ft in (5770 mm) |
| Max Loading Height | 13.46 ft in (4100 mm) |
| Max Vertical Wall Digging Depth | 9.26 ft in (2820 mm) |
| Max Digging Depth | 11.82 ft in (3600 mm) |
| Boom/Stick Option (Hex) 1 | Boom 2680mm/Stick 1380mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 18.12 ft in (5520 mm) |
| Shipping Height Of Unit | 8.24 ft in (2510 mm) |
| Max Cutting Height | 19.76 ft in (6020 mm) |
| Max Loading Height | 14.21 ft in (4330 mm) |
| Max Digging Depth | 12.67 ft in (3860 mm) |
| Max Vertical Wall Digging Depth | 10.37 ft in (3160 mm) |
| Boom/Stick Option (Hex) 2 | Boom 2680mm/Stick 1690mm |
Dimensions
| Width To Outside Of Tracks | 6.57 ft in (2000 mm) |
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Ground Clearance | 1.1 ft in (335 mm) |
| Height To Top Of Cab | 8.24 ft in (2510 mm) |
| Tail Swing Radius | 3.29 ft in (1000 mm) |
| Removal Counterweight Clearance | 1.99 ft in (605 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.25 ft in (1600 mm) |
| Ground Pressure | 4.36 psi (30 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88 |
| Net Power | 39.9 hp (29.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 133.6 cu in (2.2 L) |
| Max Torque | 101.8 lb ft (138 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 10427.9 lb (4730 kg) |
| Fuel Capacity | 18.5 gal (70 L) |
| Cooling System Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Engine Oil Capacity | 2.3 gal (8.6 L) |
| Hydraulic System Relief Valve Pressure | 3553.5 psi (24500 kPa) |
| Hydraulic Pump Flow Capacity | 33.1 gal/min (125 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
