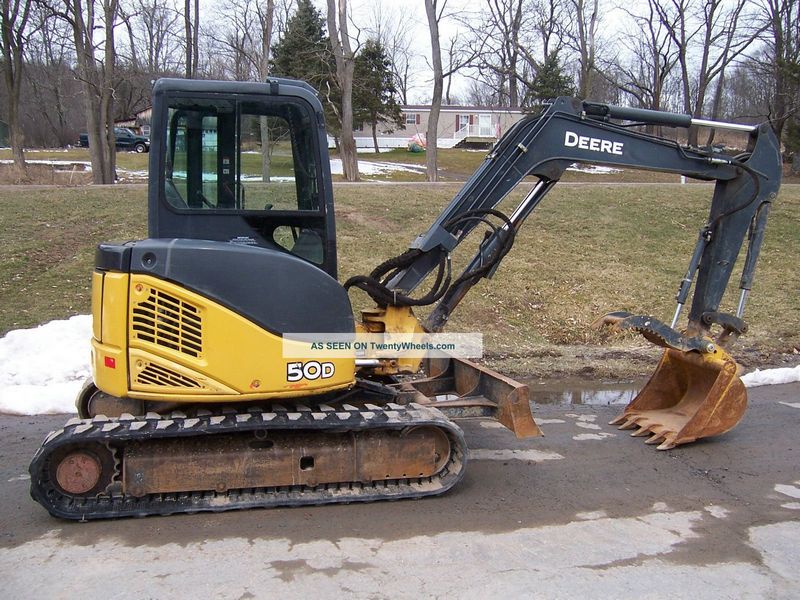

John Deere 50D
Browse All John Deere or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.93 ft in (5460 mm) |
| Shipping Height Of Unit | 8.24 ft in (2510 mm) |
| Max Cutting Height | 18.71 ft in (5700 mm) |
| Max Loading Height | 13.42 ft in (4100 mm) |
| Max Digging Depth | 11.75 ft in (3600 mm) |
| Boom/Stick Option (Hex) 1 | Standard Arm 4ft. 6.3in. 1380mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 18.12 ft in (5520 mm) |
| Shipping Height Of Unit | 8.24 ft in (2510 mm) |
| Max Cutting Height | 19.76 ft in (6020 mm) |
| Max Loading Height | 14.21 ft in (4330 mm) |
| Max Digging Depth | 12.67 ft in (3860 mm) |
| Boom/Stick Option (Hex) 2 | Long Arm 5ft. 6.5in. 1690mm |
Dimensions
| Width To Outside Of Tracks | 6.58 ft in (2000 mm) |
| Length Of Track On Ground | 6.5 ft in (2000 mm) |
| Ground Clearance | 1.11 ft in (335 mm) |
| Height To Top Of Cab | 8.24 ft in (2510 mm) |
| Tail Swing Radius | 3.25 ft in (1000 mm) |
| Removal Counterweight Clearance | 1.92 ft in (605 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 4.41 psi (30 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88 |
| Net Power | 39.9 hp (30 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 133.6 cu in (2.2 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 10428 lb (4730 kg) |
| Fuel Capacity | 18.5 gal (70 L) |
| Hydraulic System Fluid Capacity | 21.7 gal (82 L) |
| Hydraulic Pump Flow Capacity | 33 gal/min (125 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
