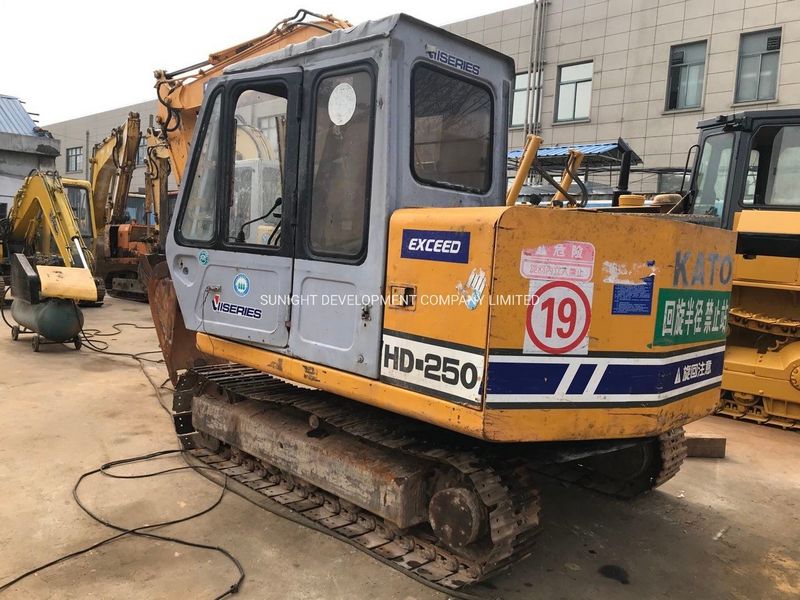

Kato HD250VII
Browse All Kato or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.89 ft in (6060 mm) |
| Shipping Height Of Unit | 8.32 ft in (2535 mm) |
| Max Cutting Height | 21.43 ft in (6530 mm) |
| Max Loading Height | 14.7 ft in (4480 mm) |
| Max Vertical Wall Digging Depth | 11.62 ft in (3540 mm) |
| Max Digging Depth | 13.52 ft in (4120 mm) |
Dimensions
| Width To Outside Of Tracks | 7.06 ft in (2150 mm) |
| Length Of Track On Ground | 6.96 ft in (2120 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.32 ft in (2535 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.4 ft in (730 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 5.58 ft in (1700 mm) |
| Ground Pressure | 4.27 psi (29.45 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | C S4F |
| Gross Power | 54 hp (40.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 180.4 cu in (3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 13889.2 lb (6300 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Relief Valve Pressure | 3980 psi (27441.2 kPa) |
Swing Mechanism
| Swing Speed | 16 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
