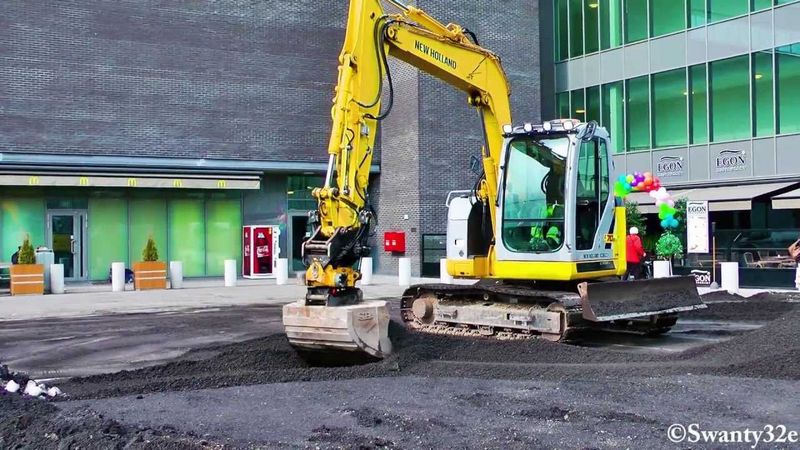

New Holland E70B
Browse All New Holland or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 20.94 ft in (6380 mm) |
| Shipping Height Of Unit | 9.72 ft in (2960 mm) |
| Max Cutting Height | 25.23 ft in (7690 mm) |
| Max Loading Height | 18.48 ft in (5630 mm) |
| Max Reach Along Ground | 21.99 ft in (6700 mm) |
| Max Vertical Wall Digging Depth | 12.67 ft in (3860 mm) |
| Max Digging Depth | 15.03 ft in (4580 mm) |
| Boom/Stick Option (Hex) 1 | Boom 12'7" (3840mm) / Stick 7'0" (2130mm) |
Dimensions
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 7.35 ft in (2240 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.99 ft in (2740 mm) |
| Tail Swing Radius | 4.24 ft in (1290 mm) |
| Removal Counterweight Clearance | 2.42 ft in (735 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Drawbar Pull | 16100 lb (71.62 kN) |
| Ground Pressure | 3.79 psi (26.14 kPa) |
| Max Travel Speed | 3.3 mph (5.32 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AU-4LE2X |
| Net Power | 55.7 hp (41.6 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 133 cu in (2.2 L) |
| Max Torque | 148 lb ft (200.7 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharger w/ Intercooler |
Operational
| Operating Weight | 17284.3 lb (7840 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Cooling System Fluid Capacity | 2.3 gal (8.5 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4770 psi (32888 kPa) |
| Hydraulic Pump Flow Capacity | 34.9 gal/min (132 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
| Swing Torque | 14040 lb ft (19035.7 Nm) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.6 yd3 (0.5 m3) |
