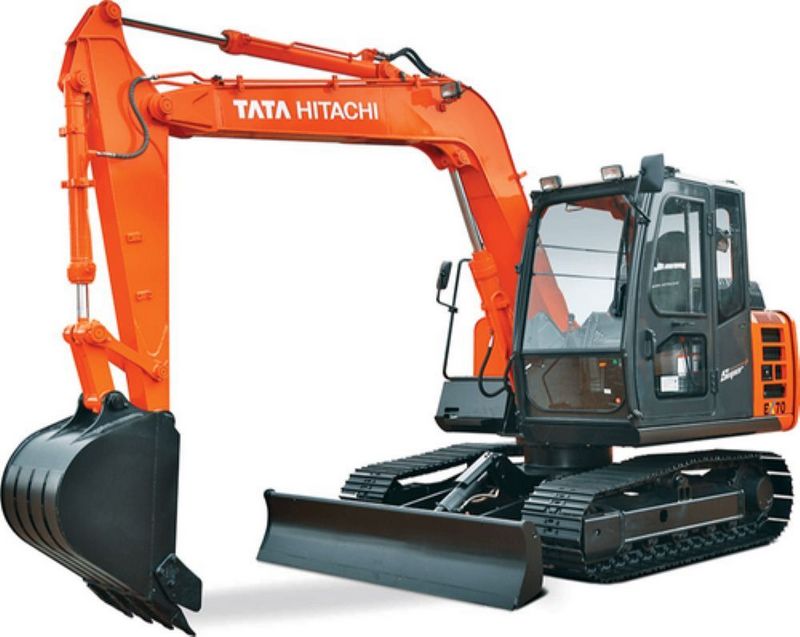

Tata Hitachi EX70
Browse All Tata Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 23.46 ft in (7150 mm) |
| Max Loading Height | 16.64 ft in (5070 mm) |
| Max Reach Along Ground | 20.21 ft in (6160 mm) |
| Max Vertical Wall Digging Depth | 11.49 ft in (3500 mm) |
| Max Digging Depth | 13.62 ft in (4150 mm) |
| Boom/Stick Option (Hex) 1 | Boom 3720mm/Stick 1620mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 24.78 ft in (7550 mm) |
| Max Loading Height | 17.95 ft in (5470 mm) |
| Max Reach Along Ground | 21.86 ft in (6660 mm) |
| Max Digging Depth | 15.29 ft in (4660 mm) |
| Max Vertical Wall Digging Depth | 13.33 ft in (4060 mm) |
| Boom/Stick Option (Hex) 2 | Boom 3720mm/Stick 2120mm |
Dimensions
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Length Of Track On Ground | 6.83 ft in (2080 mm) |
| Ground Clearance | 1.2 ft in (365 mm) |
| Height To Top Of Cab | 8.8 ft in (2680 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.07 ft in (1850 mm) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 37 |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 4.56 psi (31.38 kPa) |
Engine
| Engine Model | TATA-497 NA |
| Gross Power | 58 hp (43.3 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 137.4 lb ft (186.2 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 15917.4 lb (7220 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Engine Oil Capacity | 2.7 gal (10 L) |
| Swing Drive Fluid Capacity | 0.5 gal (1.8 L) |
| Hydraulic System Relief Valve Pressure | 3982.5 psi (27458.4 kPa) |
| Hydraulic Pump Flow Capacity | 34.4 gal/min (130 L/min) |
Swing Mechanism
| Swing Speed | 14 rpm |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
