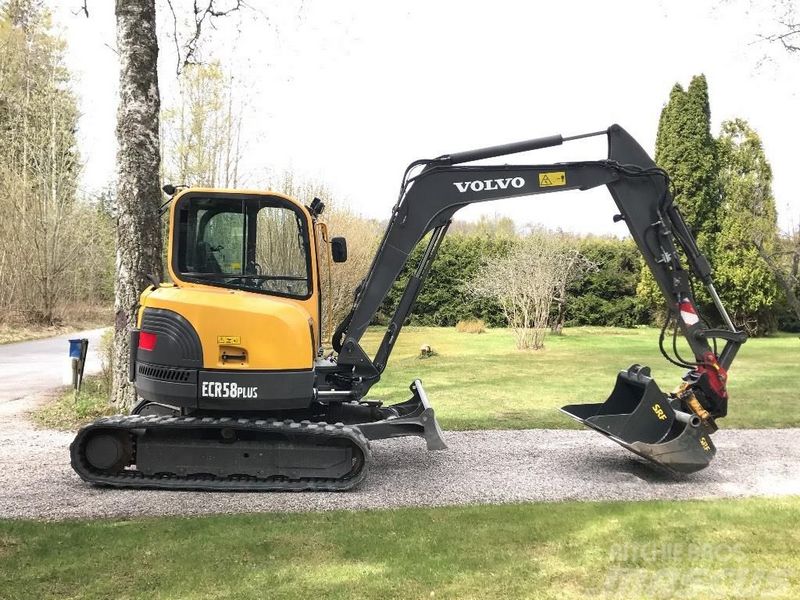

Volvo ECR58
Browse All Volvo or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 18.38 ft in (5600 mm) |
| Shipping Height Of Unit | 8.47 ft in (2580 mm) |
| Max Cutting Height | 18.41 ft in (5610 mm) |
| Max Loading Height | 13.03 ft in (3970 mm) |
| Max Reach Along Ground | 19.49 ft in (5940 mm) |
| Max Vertical Wall Digging Depth | 9.55 ft in (2910 mm) |
| Max Digging Depth | 11.82 ft in (3600 mm) |
| Boom/Stick Option (Hex) 1 | Boom 9'6" (2900mm)/Stick 5'0.6" (1540mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 18.38 ft in (5600 mm) |
| Shipping Height Of Unit | 8.47 ft in (2580 mm) |
| Max Cutting Height | 19.2 ft in (5850 mm) |
| Max Loading Height | 13.82 ft in (4210 mm) |
| Max Reach Along Ground | 20.74 ft in (6320 mm) |
| Max Digging Depth | 13.13 ft in (4000 mm) |
| Max Vertical Wall Digging Depth | 10.7 ft in (3260 mm) |
| Boom/Stick Option (Hex) 2 | Boom 9'6" (2900mm)/Stick 6'4.4" (1940mm) |
Dimensions
| Width To Outside Of Tracks | 6.57 ft in (2000 mm) |
| Length Of Track On Ground | 6.4 ft in (1950 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Height To Top Of Cab | 8.47 ft in (2580 mm) |
| Tail Swing Radius | 3.29 ft in (1000 mm) |
| Removal Counterweight Clearance | 2.2 ft in (670 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 5.25 ft in (1600 mm) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 4.26 psi (29.38 kPa) |
| Max Travel Speed | 2.7 mph (4.35 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3.1 |
| Gross Power | 52 hp (38.8 kw) |
| Net Power | 50.8 hp (37.9 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.4 cu in (3.1 L) |
| Max Torque | 147.5 lb ft (200 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 12056 lb (5468.6 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Cooling System Fluid Capacity | 1.8 gal (6.5 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Engine Oil Capacity | 3.1 gal (11.5 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 3483 psi (24014.5 kPa) |
| Hydraulic Pump Flow Capacity | 34.3 gal/min (129.9 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
