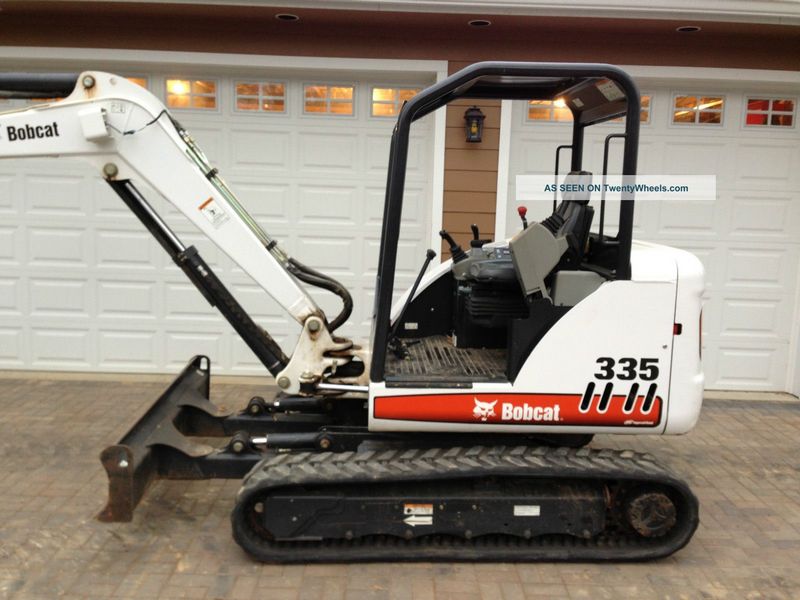

Bobcat 335
Browse All Bobcat or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 16.08 ft in (4901.19 mm) |
| Shipping Height Of Unit | 7.33 ft in (2234.19 mm) |
| Max Loading Height | 11.59 ft in (3532.64 mm) |
| Max Reach Along Ground | 17.96 ft in (5474.21 mm) |
| Max Digging Depth | 11.58 ft in (3529.59 mm) |
Dimensions
| Width To Outside Of Tracks | 5.84 ft in (1780.04 mm) |
| Height To Top Of Cab | 7.83 ft in (2386.59 mm) |
Undercarriage
| Max Travel Speed | 3.4 mph (5.48 km/h) |
Engine
| Engine Make | 2334 |
| Engine Model | V2203 -M-DI-E2B-BC-1 |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Operating Weight | 9170 lb (4159.5 kg) |
| Hydraulic Pump Flow Capacity | 19.8 gal/min (75 L/min) |
