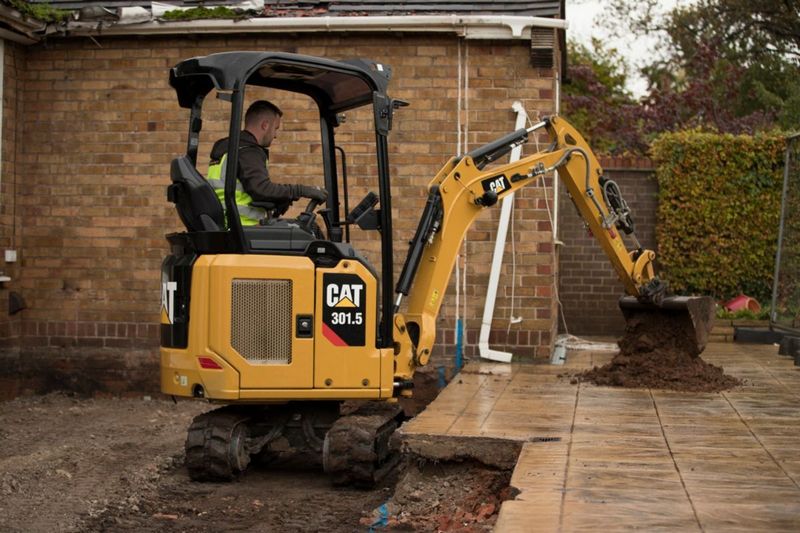

Caterpillar 301.5
Browse All Caterpillar or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 10.9 ft in (3320 mm) |
| Max Loading Height | 7.75 ft in (2360 mm) |
| Max Reach Along Ground | 8.86 ft in (2700 mm) |
| Max Vertical Wall Digging Depth | 5.32 ft in (1620 mm) |
| Max Digging Depth | 6.99 ft in (2130 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 890mm |
Dimensions
| Width To Outside Of Tracks | 3.22 ft in (980 mm) |
| Length Of Track On Ground | 3.35 ft in (1020 mm) |
| Ground Clearance | 0.73 ft in (220 mm) |
| Height To Top Of Cab | 7.19 ft in (2190 mm) |
| Tail Swing Radius | 3.52 ft in (1070 mm) |
| Track Gauge | 2.5 ft in (762 mm) |
| Maximum Dump Height - Standard Stick | 7.75 ft in (2.37 m) |
| Maximum Horizontal Reach - Standard Stick | 12.17 ft in (3.71 m) |
| Maximum Reach - Ground Level - Standard Stick | 11.83 ft in (3.61 m) |
| Maximum Vertical Dig Depth - Standard Stick | 5.33 ft in (1.63 m) |
| Removal Counterweight Clearance | 1.51 ft in (460 mm) |
| Shipping Length | 12.08 ft in (3681.99 mm) |
| Stick Length - Standard Stick | 2.92 ft in (0.9 m) |
| Swing Radius - Rear | 3.5 ft in (1.07 m) |
| Center Ground Clearance | 0.75 ft in (0.23 m) |
| Height - Over Canopy | 7.17 ft in (2.19 m) |
| Height - Over Cab | 7.17 ft in (2.19 m) |
| Maximum Cutting Height - Standard Stick | 10.92 ft in (3.33 m) |
| Maximum Digging Depth - Standard Stick | 7 ft in (2.14 m) |
| Track Shoe Width | 9 ft in (2.75 m) |
| Width - Over Track | 3.25 ft in (1 m) |
| Width - Upper Structure | 3.25 ft in (1 m) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.47 ft in (750 mm) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
| Drawbar Pull | 3060 lb (13.62 kN) |
Electrical System
| Electrical System Type | Twelve-volt system |
Swing System
| Swing System Type | Hydraulic Motor Driven |
| Machine Swing Speed | 9.7 rpm |
| Boom Swing - Left - Without Stop | 90 degrees |
| Boom Swing - Left - With Stop | 54 degrees |
| Boom Swing - Right | 50 degrees |
Engine
| Engine Model | 3003 |
| Gross Power | 18.4 hp (13.8 kw) |
| Displacement | 58 cu in (1 L) |
| Engine Model | 3003 |
Operational
| Operating Weight | 3688.4 lb (1673 kg) |
| Fuel Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 9.8 gal (37 L) |
| Hydraulic System Relief Valve Pressure | 2700 psi (18615.9 kPa) |
| Hydraulic Pump Flow Capacity | 4.5 gal/min (17 L/min) |
Weights
| Operating Weight | 3434 lb (1557.7 kg) |
| Operating Weight - With Cab | 3687 lb (1672.4 kg) |
Blade
| Height | 10 in (254 mm) |
| Width | 3.3 ft in (990.6 mm) |
| Lift Height | 8 in (203.2 mm) |
| Dig Depth | 9 in (228.6 mm) |
Hydraulic System
| Operating Pressure - Swing | 2528 psi |
| Pump - Gear (Single) | 4.5 gal/min |
| Pump - Gear (Tandem) | 4.2 gal/min |
| Operating Pressure - Equipment | 2734 psi |
| Operating Pressure - Travel | 2734 psi |
| Digging Force - Stick - Standard | 1984 lb (900 kg) |
| Digging Force - Bucket | 2843 lb (1289.6 kg) |
| Auxiliary Circuit - Primary (245 Bar/3,553 Psi) | 8.4 gal/min |
Service Refill Capacities
| Fuel Tank | 5.8 gal (22 L) |
| Hydraulic Tank | 5.3 gal (20.1 L) |
| Hydraulic System | 9.8 gal (37.1 L) |
| Engine Oil | 0.9 gal (3.5 L) |
| Cooling System Tag | 1.2 gal (4.6 L) |
Engine Dimensions
| Bore | 3 in (76.2 mm) |
| Stroke | 3 in (76.2 mm) |
| Displacement | 58.2 cu in (1 L) |
Msc Comments
| Msc Spec Date | 1/1/2000 |
Travel System
| Maximum Traction Force - High Speed | 1440 lb (653.2 kg) |
| Maximum Traction Force - Low Speed | 3060 lb (1388 kg) |
| Gradeability - Maximum - High | 30 degrees |
| Travel Speed - High | 2.7 mph (4.4 km/h) |
| Travel Speed - Low | 1.4 mph (2.3 km/h) |
