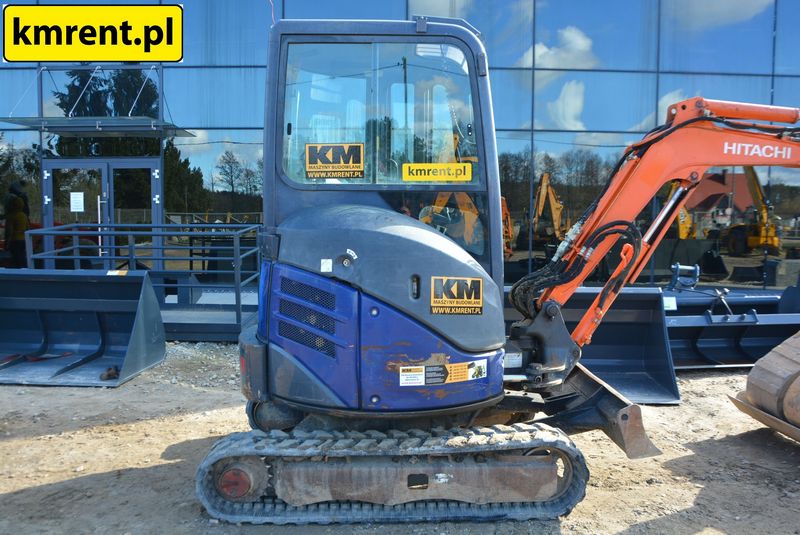

Hitachi ZX22U-2
Browse All Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.9 ft in (3930 mm) |
| Max Cutting Height | 13.59 ft in (4140 mm) |
| Shipping Height Of Unit | 7.91 ft in (2410 mm) |
| Max Loading Height | 9.42 ft in (2870 mm) |
| Max Vertical Wall Digging Depth | 6.34 ft in (1930 mm) |
| Max Digging Depth | 7.62 ft in (2320 mm) |
| Boom/Stick Option (Hex) 1 | Boom 1880mm/Stick 1000mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.28 ft in (4350 mm) |
| Shipping Length Of Unit | 13.03 ft in (3970 mm) |
| Max Loading Height | 10.11 ft in (3080 mm) |
| Shipping Height Of Unit | 7.91 ft in (2410 mm) |
| Max Vertical Wall Digging Depth | 7.26 ft in (2210 mm) |
| Max Digging Depth | 8.49 ft in (2585 mm) |
| Boom/Stick Option (Hex) 2 | Boom 1880mm/Stick 1300mm |
Dimensions
| Width To Outside Of Tracks | 4.76 ft in (1450 mm) |
| Length Of Track On Ground | 4.83 ft in (1470 mm) |
| Ground Clearance | 0.97 ft in (295 mm) |
| Height To Top Of Cab | 7.91 ft in (2410 mm) |
| Tail Swing Radius | 2.38 ft in (725 mm) |
| Removal Counterweight Clearance | 1.68 ft in (510 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.94 ft in (1200 mm) |
| Ground Pressure | 3.78 psi (26 kPa) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
| Number Of Track Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV76 |
| Net Power | 19.6 hp (14.6 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 68.1 cu in (1.2 L) |
| Max Torque | 48.7 lb ft (66 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 4872.3 lb (2210 kg) |
| Fuel Capacity | 7.7 gal (29 L) |
| Cooling System Fluid Capacity | 1.2 gal (4.3 L) |
| Hydraulic System Fluid Capacity | 10.1 gal (38 L) |
| Engine Oil Capacity | 1.1 gal (3.8 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 15.3 gal/min (57.6 L/min) |
Swing Mechanism
| Swing Speed | 9.7 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
