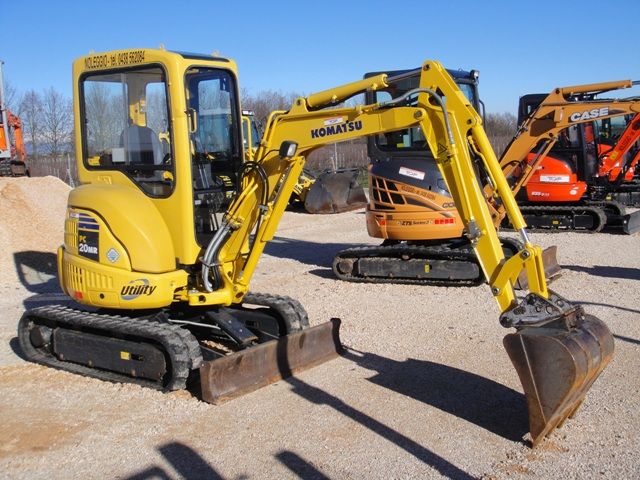

Komatsu PC20 MRx
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.89 ft in (3930 mm) |
| Max Cutting Height | 12.62 ft in (3845 mm) |
| Shipping Height Of Unit | 7.9 ft in (2410 mm) |
| Max Loading Height | 8.47 ft in (2580 mm) |
| Max Reach Along Ground | 13.51 ft in (4115 mm) |
| Max Vertical Wall Digging Depth | 6.63 ft in (2020 mm) |
| Max Digging Depth | 7.75 ft in (2360 mm) |
| Boom/Stick Option (Hex) 1 | arm w/ stick 930mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 13.06 ft in (3980 mm) |
| Shipping Length Of Unit | 12.89 ft in (3930 mm) |
| Max Loading Height | 8.9 ft in (2710 mm) |
| Shipping Height Of Unit | 7.9 ft in (2410 mm) |
| Max Reach Along Ground | 14.56 ft in (4435 mm) |
| Max Vertical Wall Digging Depth | 7.68 ft in (2340 mm) |
| Max Digging Depth | 8.91 ft in (2715 mm) |
| Boom/Stick Option (Hex) 2 | arm w/ stick 1280mm |
Dimensions
| Width To Outside Of Tracks | 4.76 ft in (1450 mm) |
| Height To Top Of Cab | 7.91 ft in (2410 mm) |
| Tail Swing Radius | 2.63 ft in (800 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.94 ft in (1200 mm) |
| Ground Pressure | 4.55 psi (31.38 kPa) |
| Max Travel Speed | 2.99 mph (4.8 km/h) |
Engine
| Engine Make | 2238 |
| Engine Model | 3D74E-N3A |
| Net Power | 19 hp (14.2 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 61.4 cu in (1.1 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 4982.5 lb (2260 kg) |
| Fuel Capacity | 6.7 gal (25 L) |
| Cooling System Fluid Capacity | 1.5 gal (5.3 L) |
| Hydraulic System Fluid Capacity | 5.6 gal (21 L) |
| Engine Oil Capacity | 1.1 gal (3.8 L) |
| Hydraulic System Relief Valve Pressure | 3045.8 psi (21000 kPa) |
| Hydraulic Pump Flow Capacity | 15.8 gal/min (59.8 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
