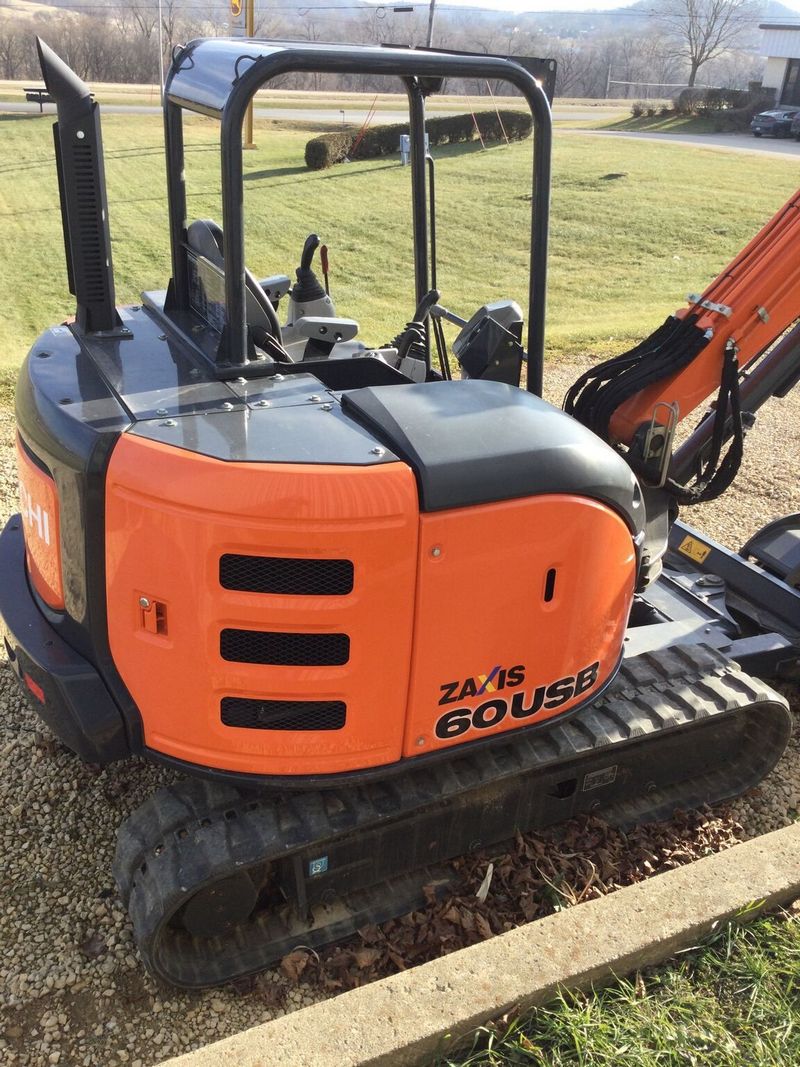

Hitachi ZX60USB-5
Browse All Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 19.7 ft in (6004.56 mm) |
| Max Digging Depth | 12.4 ft in (3779.52 mm) |
| Boom/Stick Option (Hex) 1 | 1500-mm (4 ft. 11 in.) Standard Arm |
| Max Digging Reach | 20.5 ft in (6248.4 mm) |
| Max.Dumping Height | 13.8 ft in (4206.24 mm) |
| Minimum Swing Radius | 96.46 in (2450 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 20.4 ft in (6217.92 mm) |
| Max Digging Depth | 13.6 ft in (4145.28 mm) |
| Boom/Stick Option (Hex) 2 | 1850-mm (6 ft. 1 in.) Long Arm |
| Max.Dumping Height | 14.6 ft in (4450.08 mm) |
| Minimum Swing Radius | 100 in (2540 mm) |
| Max Digging Reach | 21.6 ft in (6583.68 mm) |
Dimensions
| Counterweight Clearance | 2.04 ft in (620 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Tail Swing Radius | 4.3 ft in (1310.65 mm) |
| Blade Width | 6.7 ft in (2042.16 mm) |
| Overall Height | 8.4 ft in (2560.33 mm) |
| Track Length | 98.43 in (2500 mm) |
| Track Width | 1312.34 ft in (400 m) |
Undercarriage
| Tracks, Rubber | 15.75 in (400 mm) |
Engine
| Emission Tier Level | EPA Final Tier 4 |
| Engine Model | 4TNV98C |
| Net Power | 53.2 hp (39.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Alternator | 55 amps |
Capacities
| Engine Oil With Filter | 3 gal (11.2 L) |
| Fuel Tank | 31.8 gal (120 L) |
| Hydraulic Tank | 21.2 gal (80 L) |
| Cooling System | 2.1 gal (7.7 L) |
Operational
| Blade Height | 16.6 in (420 mm) |
Performance
| Travel Speed Low | 1.9 mph (2.9 km/h) |
| Travel Speed - High | 3 mph (4.8 km/h) |
Swing Mechanism
| Swing Brake | Spring-applied, hydraulically released, automatic, disc type |
| Swing Speed | 9.5 rpm |
Weights
| Counterweight | 1642.5 lb (745 kg) |
Buckets
| Bucket Digging Force - Sae | 9239.7 lb (41.1 kN) |
| Arm Digging Force | 6991.6 lb (31.1 kN) |
Blade
| Maximum Drop Below Ground | 1.3 ft in (370 mm) |
| Optional Blade Edge Profile | 458 kg (1010 lb) |
Hydraulic System
| Auxiliary Hydraulic Flow | 24.4 gal/min (92 L/min) |
Blade
| Maximum Lift Above Ground | 1.6 ft in (460 mm) |
Hydraulic
| Pump Flow | 38.1 gal/min (144 L/min) |
Boom
| Boom Swing Left | 80 degrees |
| Boom Swing Right | 60 degrees |
