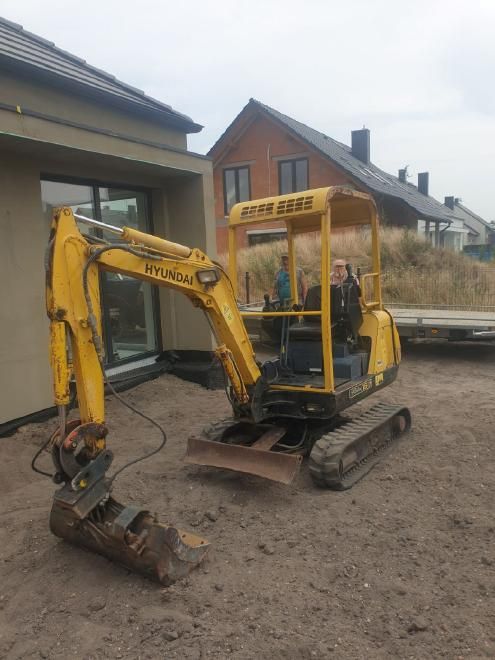

Hyundai R16-7
Browse All Hyundai or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.28 ft in (3740 mm) |
| Max Cutting Height | 11.04 ft in (3365 mm) |
| Shipping Height Of Unit | 7.42 ft in (2260 mm) |
| Max Loading Height | 7.58 ft in (2310 mm) |
| Max Reach Along Ground | 12.83 ft in (3910 mm) |
| Max Vertical Wall Digging Depth | 5.6 ft in (1705 mm) |
| Max Digging Depth | 7.71 ft in (2350 mm) |
Dimensions
| Width To Outside Of Tracks | 4.27 ft in (1300 mm) |
| Length Of Track On Ground | 3.67 ft in (1130 mm) |
| Height To Top Of Cab | 7.42 ft in (2260 mm) |
| Tail Swing Radius | 5.35 ft in (1630 mm) |
Undercarriage
| Shoe Size | 9 in (228.6 mm) |
| Track Gauge | 3.33 ft in (1020 mm) |
| Max Travel Speed | 2.43 mph (3.9 km/h) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
| Drawbar Pull | 2840 lb (12.64 kN) |
Engine
| Engine Make | 2251 |
| Engine Model | L3E-W231 |
| Net Power | 17 hp (12.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 58.1 cu in (1 L) |
Operational
| Operating Weight | 3594 lb (1630.3 kg) |
| Fuel Capacity | 5.3 gal (20 L) |
| Cooling System Fluid Capacity | 1.5 gal (5.6 L) |
| Hydraulic System Fluid Capacity | 6.4 gal (24 L) |
| Engine Oil Capacity | 1 gal (3.5 L) |
| Hydraulic System Relief Valve Pressure | 2700 psi (18615.9 kPa) |
| Hydraulic Pump Flow Capacity | 12.5 gal/min (47.1 L/min) |
Swing Mechanism
| Swing Speed | 11.5 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
