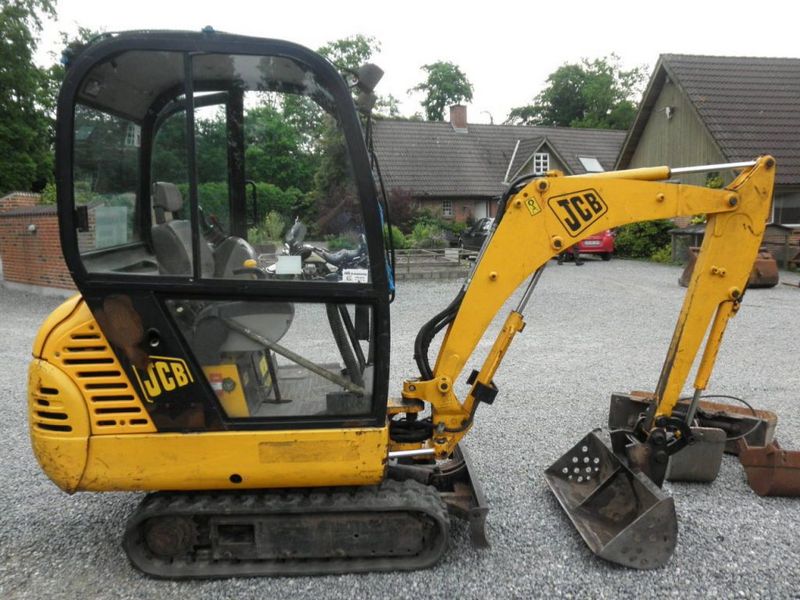

JCB 8017
Browse All JCB or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 10.92 ft in (3346 mm) |
| Max Cutting Height | 11.17 ft in (3393 mm) |
| Shipping Height Of Unit | 7.58 ft in (2318 mm) |
| Max Loading Height | 8.25 ft in (2501 mm) |
| Max Reach Along Ground | 12.33 ft in (3764 mm) |
| Max Vertical Wall Digging Depth | 5.42 ft in (1659 mm) |
| Max Digging Depth | 6.67 ft in (2044 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 3ft.10in.(1161mm ) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.33 ft in (3454 mm) |
| Shipping Length Of Unit | 10.67 ft in (3261 mm) |
| Max Loading Height | 8.42 ft in (2559 mm) |
| Shipping Height Of Unit | 7.5 ft in (2304 mm) |
| Max Reach Along Ground | 12.58 ft in (3847 mm) |
| Max Vertical Wall Digging Depth | 5.75 ft in (1754 mm) |
| Max Digging Depth | 7 ft in (2144 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 4ft.2in.(1261mm ) |
Dimensions
| Width To Outside Of Tracks | 3.17 ft in (972 mm) |
| Length Of Track On Ground | 3.67 ft in (1127 mm) |
| Ground Clearance | 0.6 ft in (158 mm) |
| Height To Top Of Cab | 7.58 ft in (2318 mm) |
| Tail Swing Radius | 3.33 ft in (1028 mm) |
| Removal Counterweight Clearance | 1.25 ft in (376 mm) |
Undercarriage
| Track Gauge | 2.42 ft in (742 mm) |
| Max Travel Speed | 2.36 mph (3.8 km/h) |
Engine
| Engine Model | 403C-11 |
| Gross Power | 19.7 hp (14.7 kw) |
| Net Power | 19 hp (14.2 kw) |
| Displacement | 69 cu in (1.2 L) |
| Max Torque | 45.8 lb ft (62 Nm) |
Operational
| Operating Weight | 3505 lb (1590 kg) |
| Fuel Capacity | 6.2 gal (23.5 L) |
| Cooling System Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity | 1.1 gal (4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 7.1 gal/min (26.9 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
