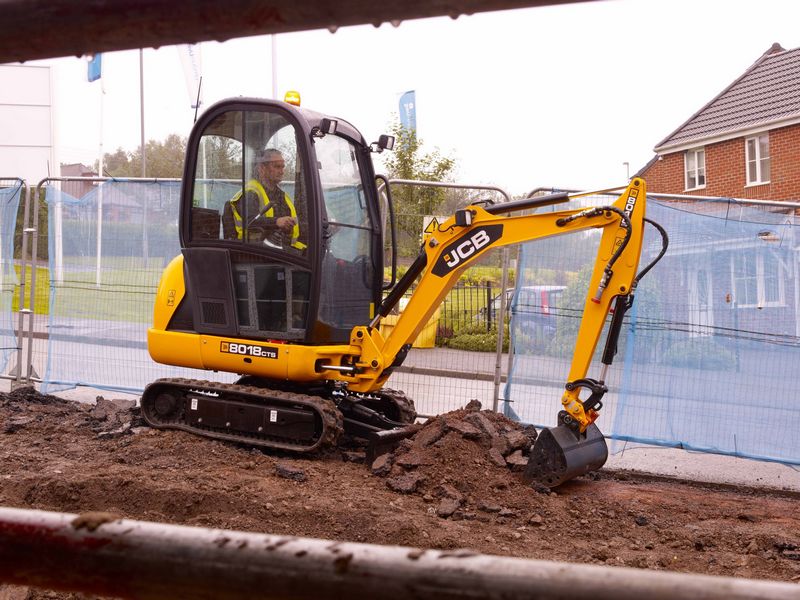

JCB 8018
Browse All JCB or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11 ft in (3352 mm) |
| Max Cutting Height | 11.33 ft in (3460 mm) |
| Shipping Height Of Unit | 7.5 ft in (2304 mm) |
| Max Loading Height | 8.42 ft in (2568 mm) |
| Max Reach Along Ground | 12.67 ft in (3865 mm) |
| Max Vertical Wall Digging Depth | 5.75 ft in (1750 mm) |
| Max Digging Depth | 7 ft in (2142 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 3ft.10in. (1161mm ) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 12 ft in (3660 mm) |
| Shipping Length Of Unit | 10.5 ft in (3219 mm) |
| Max Loading Height | 9.08 ft in (2765 mm) |
| Shipping Height Of Unit | 7.5 ft in (23044 mm) |
| Max Reach Along Ground | 13.75 ft in (4184 mm) |
| Max Vertical Wall Digging Depth | 6.83 ft in (2082 mm) |
| Max Digging Depth | 8.17 ft in (2477 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 4ft.2in.(1261mm ) |
Dimensions
| Width To Outside Of Tracks | 9 ft in (230 mm) |
| Length Of Track On Ground | 3.67 ft in (1127 mm) |
| Ground Clearance | 0.6 ft in (158 mm) |
| Height To Top Of Cab | 7.58 ft in (2318 mm) |
| Tail Swing Radius | 3.33 ft in (1028 mm) |
| Removal Counterweight Clearance | 1.25 ft in (376 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.47 ft in (750 mm) |
| Ground Pressure | 4.55 psi (31.38 kPa) |
| Number Of Track Rollers Per Side | 3 |
| Max Travel Speed | 2.36 mph (3.8 km/h) |
Engine
| Engine Model | 403C-11 |
| Gross Power | 19.7 hp (14.7 kw) |
| Net Power | 19 hp (14.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 69 cu in (1.2 L) |
| Max Torque | 45.8 lb ft (62 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 3664 lb (1662 kg) |
| Fuel Capacity | 6.2 gal (23.5 L) |
| Cooling System Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity | 1.1 gal (4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (23000.9 kPa) |
| Hydraulic Pump Flow Capacity | 11.5 gal/min (3.2 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
