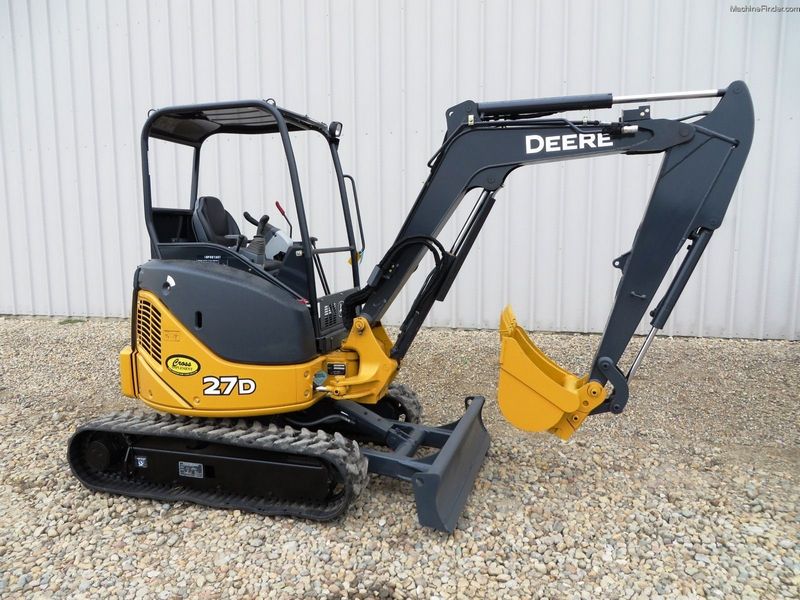

John Deere 27D
Browse All John Deere or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.78 ft in (4200 mm) |
| Max Cutting Height | 14.64 ft in (4460 mm) |
| Shipping Height Of Unit | 8.08 ft in (2460 mm) |
| Max Loading Height | 10.5 ft in (3210 mm) |
| Max Digging Depth | 8.58 ft in (2620 mm) |
| Boom/Stick Option (Hex) 1 | Arm 3ft. 10in. 1170mm |
Dimensions
| Width To Outside Of Tracks | 5.08 ft in (1550 mm) |
| Length Of Track On Ground | 4.92 ft in (1490 mm) |
| Ground Clearance | 1 ft in (320 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Tail Swing Radius | 2.55 ft in (775 mm) |
| Removal Counterweight Clearance | 1.83 ft in (560 mm) |
Undercarriage
| Shoe Size | 12 in (300 mm) |
| Ground Pressure | 3.9 psi (26.9 kPa) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV88 |
| Net Power | 26.4 hp (20 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 100 cu in (1.7 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 6393.5 lb (2900 kg) |
| Fuel Capacity | 10.5 gal (40 L) |
| Hydraulic System Fluid Capacity | 9.2 gal (34.8 L) |
| Hydraulic Pump Flow Capacity | 16.4 gal/min (62.1 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
