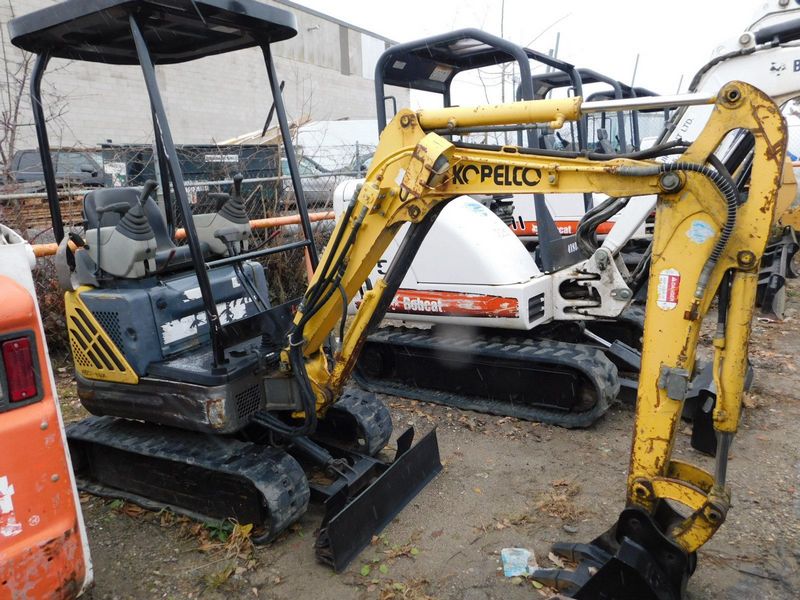

Kobelco 13SR
Browse All Kobelco or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 10.96 ft in (3340 mm) |
| Max Cutting Height | 11.91 ft in (3630 mm) |
| Shipping Height Of Unit | 8.21 ft in (2500 mm) |
| Max Loading Height | 8.4 ft in (2560 mm) |
| Max Reach Along Ground | 12.08 ft in (3680 mm) |
| Max Vertical Wall Digging Depth | 5.75 ft in (1750 mm) |
| Max Digging Depth | 6.93 ft in (2110 mm) |
| Boom/Stick Option (Hex) 1 | Stick 3'4" (1020mm) |
Dimensions
| Width To Outside Of Tracks | 2.92 ft in (890 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Ground Clearance | 0.6 ft in (180 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 1.91 ft in (580 mm) |
| Removal Counterweight Clearance | 1.42 ft in (430 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.17 ft in (660 mm) |
| Drawbar Pull | 4160 lb (18.51 kN) |
| Ground Pressure | 3.21 psi (22.14 kPa) |
| Max Travel Speed | 2.3 mph (3.71 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNE68-YB |
| Net Power | 11.9 hp (8.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 47.9 cu in (0.8 L) |
Operational
| Operating Weight | 3240 lb (1469.7 kg) |
| Fuel Capacity | 4 gal (15.2 L) |
| Hydraulic System Fluid Capacity | 4.5 gal (17 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 20 amps |
| Hydraulic System Relief Valve Pressure | 2988 psi (20601.6 kPa) |
| Hydraulic Pump Flow Capacity | 9.4 gal/min (35.6 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
