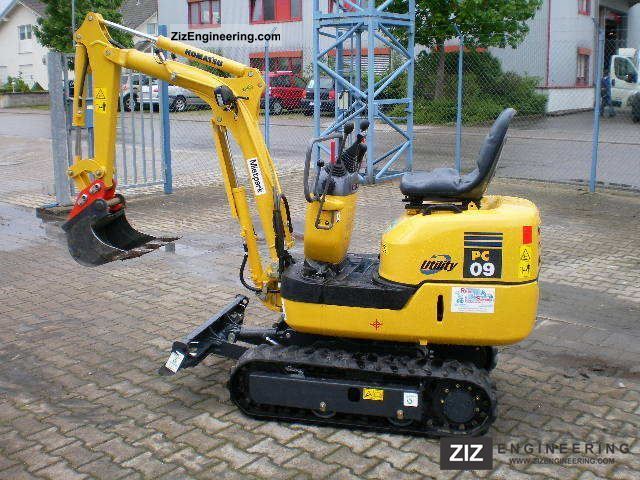

Komatsu PC09-1
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 3.84 ft in (1170 mm) |
| Max Digging Depth | 4.93 ft in (1500 mm) |
Dimensions
| Width To Outside Of Tracks | 2.63 ft in (800 mm) |
| Ground Clearance | 5.58 ft in (1700 mm) |
| Height To Top Of Cab | 6.89 ft in (2100 mm) |
| Tail Swing Radius | 2.6 ft in (790 mm) |
Undercarriage
| Max Travel Speed | 1.87 mph (3 km/h) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2238 |
| Engine Model | 2D70E |
| Displacement | 34.7 cu in (0.6 L) |
| Aspiration | Water-cooled 4 cycle turbulence chamber |
Operational
| Operating Weight | 2072.4 lb (940 kg) |
| Fuel Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 0.6 gal (2.1 L) |
| Hydraulic System Fluid Capacity | 2.4 gal (9 L) |
| Engine Oil Capacity | 0.5 gal (1.7 L) |
Swing Mechanism
| Swing Speed | 8.3 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
