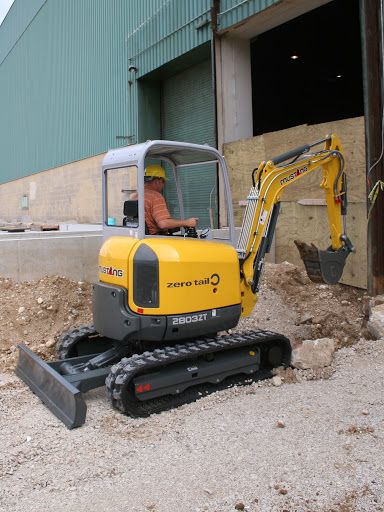

Mustang 2803ZT
Browse All Mustang or Mini Excavator Models
Contents:
Dimensions
| Width To Outside Of Tracks | 1.01 ft in (305 mm) |
| Length Of Track On Ground | 14 ft in (4255 mm) |
| Ground Clearance | 0.91 ft in (277 mm) |
| Height To Top Of Cab | 8 ft in (2408 mm) |
| Tail Swing Radius | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 12 in (305 mm) |
| Track Gauge | 5.17 ft in (1570 mm) |
| Number Of Track Rollers Per Side | 3 |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 2.1 mph (3.8 km/h) |
| Ground Pressure | 3.8 psi (26.21 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2291 |
| Engine Model | YANMAR 3TVNV88-PNS Diesel A TIER III |
| Gross Power | 24 hp (18 kw) |
| Net Power | 20 hp (15 kw) |
| Displacement | 68 cu in (1114 L) |
Operational
| Operating Weight | 5886 lb (2670 kg) |
| Fuel Capacity | 9.5 gal (36 L) |
| Hydraulic System Fluid Capacity | 7 gal (27 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 44 amps |
| Hydraulic System Relief Valve Pressure | 2988 psi (20601.6 kPa) |
| Hydraulic Pump Flow Capacity | 2 gal/min (7.6 L/min) |
Swing Mechanism
| Swing Speed | 10.3 rpm |
