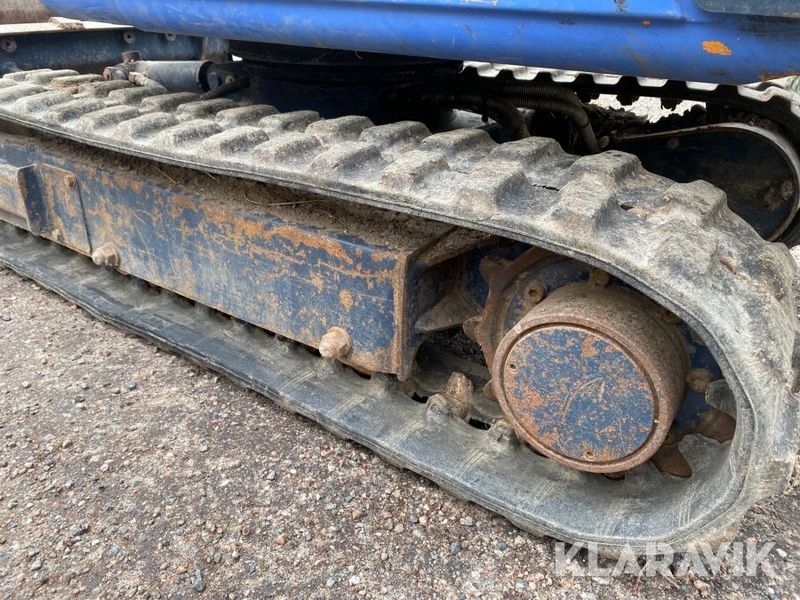

Nagano NS08
Browse All Nagano or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 9.56 ft in (2913 mm) |
| Shipping Height Of Unit | 6.74 ft in (2052 mm) |
| Max Loading Height | 6.6 ft in (2010 mm) |
| Max Reach Along Ground | 9.32 ft in (2840 mm) |
| Max Vertical Wall Digging Depth | 3.75 ft in (1140 mm) |
| Max Digging Depth | 5.09 ft in (1550 mm) |
Dimensions
| Width To Outside Of Tracks | 2.96 ft in (900 mm) |
| Length Of Track On Ground | 3.19 ft in (970 mm) |
| Tail Swing Radius | 3.06 ft in (930 mm) |
Undercarriage
| Shoe Size | 7.09 in (180 mm) |
| Max Travel Speed | 1.25 mph (2 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Gross Power | 7.4 hp (5.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 44 cu in (0.8 L) |
Operational
| Operating Weight | 1675.6 lb (760 kg) |
| Hydraulic Pump Flow Capacity | 5.4 gal/min (20.4 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
