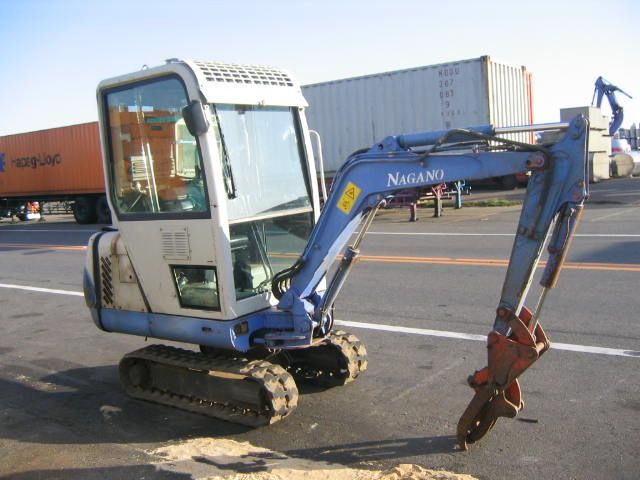

Nagano NS15
Browse All Nagano or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.21 ft in (3720 mm) |
| Shipping Height Of Unit | 7.42 ft in (2260 mm) |
| Max Loading Height | 7.16 ft in (2180 mm) |
| Max Reach Along Ground | 12.24 ft in (3730 mm) |
| Max Vertical Wall Digging Depth | 5.04 ft in (1535 mm) |
| Max Digging Depth | 7.14 ft in (2175 mm) |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000 mm) |
| Length Of Track On Ground | 3.71 ft in (1130 mm) |
| Tail Swing Radius | 3.75 ft in (1140 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Max Travel Speed | 2.49 mph (4 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Gross Power | 16.8 hp (12.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 58.1 cu in (1 L) |
Operational
| Operating Weight | 3218.8 lb (1460 kg) |
| Hydraulic Pump Flow Capacity | 8.3 gal/min (31.4 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
