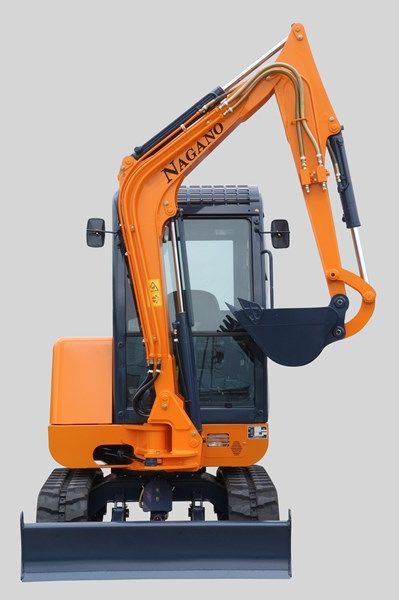

Nagano NS22
Browse All Nagano or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.37 ft in (4075 mm) |
| Shipping Height Of Unit | 7.39 ft in (2250 mm) |
| Max Loading Height | 8.24 ft in (2510 mm) |
| Max Reach Along Ground | 13.34 ft in (4065 mm) |
| Max Vertical Wall Digging Depth | 5.89 ft in (1795 mm) |
| Max Digging Depth | 7.76 ft in (2365 mm) |
Dimensions
| Width To Outside Of Tracks | 4.53 ft in (1380 mm) |
| Length Of Track On Ground | 4.35 ft in (1325 mm) |
| Tail Swing Radius | 4.12 ft in (1255 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Max Travel Speed | 2.37 mph (3.8 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Gross Power | 16.8 hp (12.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 58.1 cu in (1 L) |
Operational
| Operating Weight | 4585.7 lb (2080 kg) |
| Hydraulic Pump Flow Capacity | 12.7 gal/min (48 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
