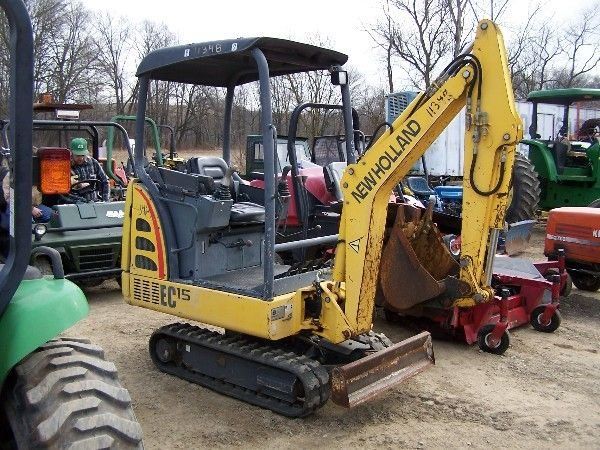

New Holland E15
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 10.92 ft in (3328.42 mm) |
| Max Cutting Height | 11.92 ft in (3633.22 mm) |
| Shipping Height Of Unit | 7.25 ft in (2209.8 mm) |
| Max Loading Height | 8.42 ft in (2566.42 mm) |
| Max Reach Along Ground | 12.07 ft in (3678.94 mm) |
| Max Vertical Wall Digging Depth | 5.75 ft in (1752.6 mm) |
| Max Digging Depth | 6.92 ft in (2109.22 mm) |
Dimensions
| Length Of Track On Ground | 5.07 ft in (1545.34 mm) |
| Ground Clearance | 0.7 ft in (213.36 mm) |
| Height To Top Of Cab | 7.58 ft in (2310.39 mm) |
| Tail Swing Radius | 1.92 ft in (585.22 mm) |
| Removal Counterweight Clearance | 1.42 ft in (432.82 mm) |
Undercarriage
| Shoe Size | 0.9 in (22.86 mm) |
| Track Gauge | 2.17 ft in (660 mm) |
| Max Travel Speed | 2.3 mph (3.71 km/h) |
| Ground Pressure | 3.21 psi (22.14 kPa) |
| Drawbar Pull | 4160 lb (18.51 kN) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNE68-YB |
| Net Power | 11.9 hp (8.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 47.9 cu in (0.8 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 3240 lb (1469.7 kg) |
| Fuel Capacity | 4 gal (15.2 L) |
| Hydraulic System Fluid Capacity | 4.5 gal (17 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 20 amps |
| Hydraulic System Relief Valve Pressure | 2988 psi (20601.6 kPa) |
| Hydraulic Pump Flow Capacity | 3.9 gal/min (14.8 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
| Swing Torque | 281 lb ft (381 Nm) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
