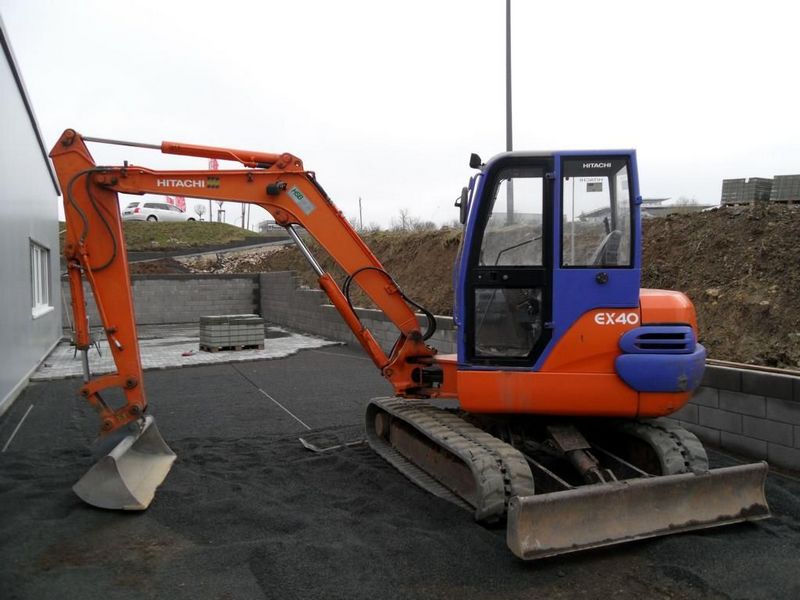

Tata Hitachi EX40
Browse All Tata Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.82 ft in (5430 mm) |
| Max Cutting Height | 19.05 ft in (5805 mm) |
| Shipping Height Of Unit | 8.27 ft in (2520 mm) |
| Max Loading Height | 13.51 ft in (4115 mm) |
| Max Vertical Wall Digging Depth | 8.81 ft in (2685 mm) |
| Max Digging Depth | 11.11 ft in (3385 mm) |
| Boom/Stick Option (Hex) 1 | Boom 2730mm/Stick 1460mm |
Dimensions
| Width To Outside Of Tracks | 6.07 ft in (1850 mm) |
| Length Of Track On Ground | 6.34 ft in (1930 mm) |
| Ground Clearance | 1.2 ft in (365 mm) |
| Height To Top Of Cab | 8.27 ft in (2520 mm) |
| Tail Swing Radius | 4.75 ft in (1445 mm) |
| Removal Counterweight Clearance | 2.09 ft in (635 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Track Gauge | 4.76 ft in (1450 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 3.55 psi (24.48 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 4 |
Engine
| Engine Model | TATA 4SP |
| Net Power | 40 hp (29.9 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 122.9 lb ft (166.6 Nm) |
Operational
| Operating Weight | 9039 lb (4100 kg) |
| Fuel Capacity | 14.6 gal (55 L) |
| Cooling System Fluid Capacity | 2 gal (7.5 L) |
| Hydraulic System Fluid Capacity | 16.4 gal (62 L) |
| Engine Oil Capacity | 1.6 gal (6 L) |
| Hydraulic System Relief Valve Pressure | 3840.3 psi (26478 kPa) |
| Hydraulic Pump Flow Capacity | 2.8 gal/min (10.5 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.2 m3) |
