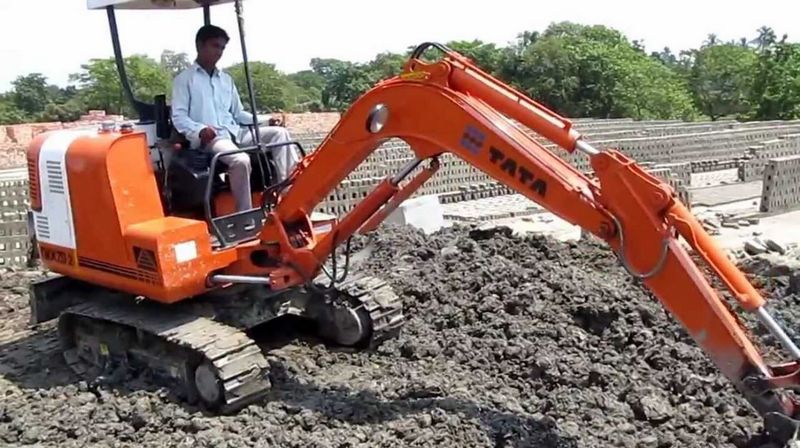

Tata Hitachi TMX20
Browse All Tata Hitachi or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.26 ft in (4041 mm) |
| Max Cutting Height | 13 ft in (3961 mm) |
| Shipping Height Of Unit | 7.77 ft in (2368 mm) |
| Max Loading Height | 8.79 ft in (2677 mm) |
| Max Reach Along Ground | 13.26 ft in (4040 mm) |
| Max Digging Depth | 7.63 ft in (2323 mm) |
| Boom/Stick Option (Hex) 1 | Boom 1900mm/Stick 1000mm |
Dimensions
| Width To Outside Of Tracks | 4.5 ft in (1370 mm) |
| Length Of Track On Ground | 4.27 ft in (1300 mm) |
| Ground Clearance | 0.96 ft in (291 mm) |
| Height To Top Of Cab | 7.77 ft in (2368 mm) |
| Tail Swing Radius | 4.11 ft in (1250 mm) |
| Removal Counterweight Clearance | 2.01 ft in (610 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Track Gauge | 3.68 ft in (1120 mm) |
| Max Travel Speed | 1.81 mph (2.9 km/h) |
| Number Of Shoes Per Side | 36 |
| Number Of Track Rollers Per Side | 3 |
| Ground Pressure | 4.27 psi (29.42 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Engine Make | 2368 |
| Engine Model | S217 |
| Gross Power | 28 hp (20.9 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 78.8 lb ft (106.9 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 4850.2 lb (2200 kg) |
| Fuel Capacity | 9.8 gal (37 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Capacity | 1.4 gal (5 L) |
| Hydraulic System Relief Valve Pressure | 2133.5 psi (14710 kPa) |
| Hydraulic Pump Flow Capacity | 16.9 gal/min (63.6 L/min) |
Swing Mechanism
| Swing Speed | 11.2 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
