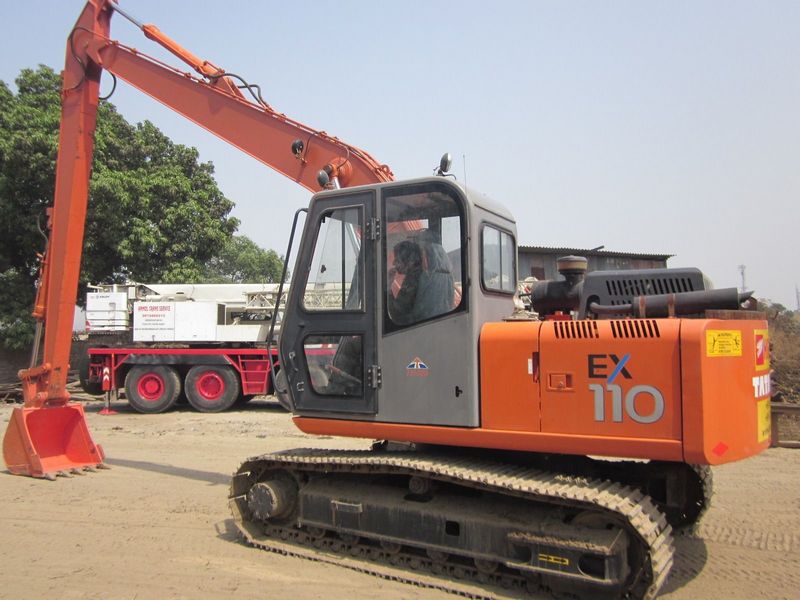

Tata Hitachi EX110
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 23.86 ft in (7270 mm) |
| Shipping Height Of Unit | 8.83 ft in (2690 mm) |
| Max Cutting Height | 25.04 ft in (7630 mm) |
| Max Loading Height | 17.33 ft in (5280 mm) |
| Max Reach Along Ground | 23.79 ft in (7250 mm) |
| Max Vertical Wall Digging Depth | 13.26 ft in (4040 mm) |
| Max Digging Depth | 15.49 ft in (4720 mm) |
| Boom/Stick Option (Hex) 1 | Boom 4250mm/Stick 1950mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 8.57 ft in (2610 mm) |
| Tail Swing Radius | 6.96 ft in (2120 mm) |
| Removal Counterweight Clearance | 3.32 ft in (1010 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Shoes Per Side | 41 |
| Max Travel Speed | 2.68 mph (4.3 km/h) |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 5.55 psi (38.27 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Engine Model | Tata 697NA |
| Net Power | 80 hp (59.7 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 213.3 lb ft (289.1 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 25353.2 lb (11500 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 33.3 gal (126 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Swing Drive Fluid Capacity | 0.9 gal (3.2 L) |
| Hydraulic System Relief Valve Pressure | 5049.3 psi (34813.7 kPa) |
| Hydraulic Pump Flow Capacity | 60.8 gal/min (230 L/min) |
Swing Mechanism
| Swing Speed | 12.1 rpm |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
