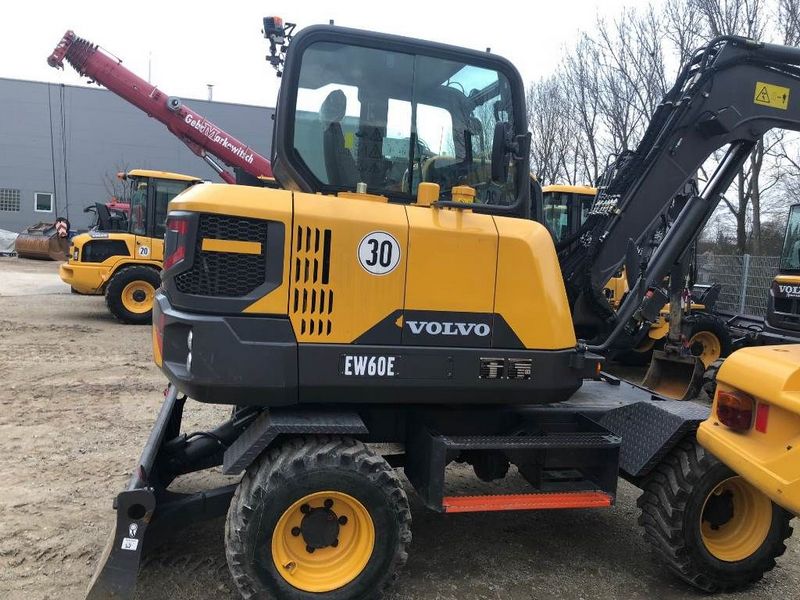

Volvo EW 60 E
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 19.71 ft in (6007 mm) |
| Max Vertical Wall Digging Depth | 7.77 ft in (2368 mm) |
| Max Digging Depth | 10.81 ft in (3292 mm) |
| Min.Front Swing Radius | 7.71 ft in (2350 mm) |
| Max.Dumping Height | 14.58 ft in (4443 mm) |
| Boom/Stick Option (Hex) 1 | Boom -2.9 m, 9.6 ft in / Arm - 1.54, m, 5.1 ft in |
| Max Digging Reach | 19.77 ft in (6024 mm) |
| Max Digging Reach On Ground | 19.07 ft in (5810 mm) |
Boom/Stick Option (Hex) 2
| Boom/Stick Option (Hex) 2 | Boom - 2.9 m, 9.6 ft in / Arm - 1.94 m, 6.4 ft in |
Dimensions
| Tail Swing Radius | 5.42 ft in (1650 mm) |
| Boom Swing | 70 degrees |
| Minimum Ground Clearance | 11.62 in (295 mm) |
| Overall Length | 19.26 ft in (5869 mm) |
| Overall Width -Upper Structure | 6.06 ft in (1845 mm) |
| Tread Width | 62.8 in (1595 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Overall Height Of Engine Hood | 6.24 ft in (1901 mm) |
| Overall Height With Cab | 9.37 ft in (2855 mm) |
Undercarriage
| Number Of Top Rollers Per Side | 2X1 |
| Tracks | 2 X 39 Shoes |
| Shoe Width - Steel | 15/20 in, ( 380/500 mm) |
| Number Of Bottom Rollers Per Side | 2X5 |
Speeds
| Speed -On Road | 30 mph (48.3 km/h) |
| Speed -Off Road | 20 mph (32.2 km/h) |
| Creep | 10 mph (16.1 km/h) |
| Min Turning Radius | 5.1 ft in (1.6 m) |
Electrical System
| Battery Capacity | 74Ah |
| Voltage | 12 V V (deletedelete) |
| Batteries | 1 X 12 V |
Swing System
| Max - Slew Speed | 10 rpm |
| Max - Slew Torque | 85.6 lb ft (116 Nm) |
Engine
| Max Power | 2000 rpm |
| Fuel Tank | 27.8 gal (105 L) |
| Number Of Cylinders | 4 |
| Engine Model | D2.6H |
| Rated Engine Speed | 2000 rpm |
| Gross Power | 63 hp (47 kw) |
| Net Power | 60.6 hp (45.2 kw) |
| Displacement | 158.7 cu in (2.6 L) |
| Bore | 3.5 in (87 mm) |
| Stroke | 4.4 in (110 mm) |
Capacities
| Hydraulic Tank - Total System | 31.8 gal (120 L) |
| Hydraulic Tank | 20.1 gal (76 L) |
| Rear Axle | 1.7 gal (6.3 L) |
| Hydraulic System | 2.2 gal (8 L) |
| Engine Oil | 3 gal (11 L) |
| Engine Coolant | 2.7 gal (10 L) |
Operational
| Operating Weight | 13380 lb (6069.1 kg) |
Performance
| Gradeability | 35 % |
Loader
| Breakout Force | 9730(IBF) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic System
| Implement | 23 psi (158.6 kPa) |
| Travel Circuit | 23 psi (158.6 kPa) |
| Pilot Circuit | 31 psi (213.8 kPa) |
