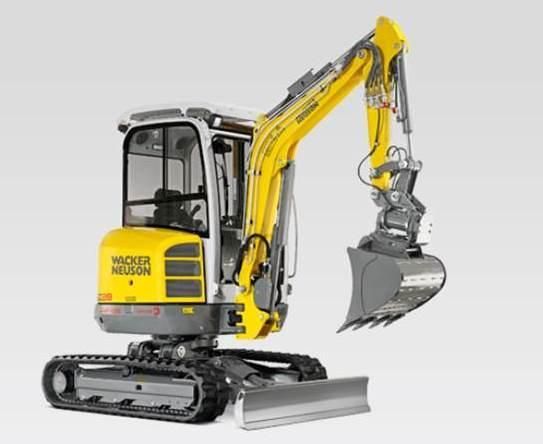

Wacker Neuson EZ28
Browse All Wacker Neuson or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.96 ft in (4254.5 mm) |
| Max Cutting Height | 13.68 ft in (4168.15 mm) |
| Shipping Height Of Unit | 7.9 ft in (2407.92 mm) |
| Max Loading Height | 9.32 ft in (2839.72 mm) |
| Max Reach Along Ground | 14.7 ft in (4480.57 mm) |
| Max Vertical Wall Digging Depth | 7.06 ft in (2151.38 mm) |
| Max Digging Depth | 8.35 ft in (2545.08 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 14.11 ft in (4300.22 mm) |
| Shipping Length Of Unit | 14.02 ft in (4272.28 mm) |
| Max Loading Height | 9.75 ft in (2969.26 mm) |
| Shipping Height Of Unit | 7.9 ft in (2407.92 mm) |
| Max Reach Along Ground | 15.36 ft in (4681.22 mm) |
| Max Vertical Wall Digging Depth | 6.44 ft in (1960.88 mm) |
| Max Digging Depth | 9 ft in (2743.2 mm) |
| Boom/Stick Option (Hex) 2 | Long arm |
Dimensions
| Width To Outside Of Tracks | 3.19 ft in (970.28 mm) |
| Length Of Track On Ground | 13.96 ft in (4254.5 mm) |
| Ground Clearance | 0.91 ft in (276.86 mm) |
| Height To Top Of Cab | 7.9 ft in (2407.92 mm) |
| Tail Swing Radius | 2.5 ft in (759.46 mm) |
Undercarriage
| Shoe Size | 11.8 in (299.73 mm) |
| Max Travel Speed | 2.4 mph (3.87 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | 3TNV80F |
| Gross Power | 21.2 hp (15.9 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 77.2 cu in (1.3 L) |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 7456 lb (3382 kg) |
| Fuel Capacity | 9.3 gal (35.3 L) |
| Hydraulic System Fluid Capacity | 7 gal (26.5 L) |
| Hydraulic System Relief Valve Pressure | 3263 psi (22497.6 kPa) |
| Hydraulic Pump Flow Capacity | 23.6 gal/min (89.4 L/min) |
