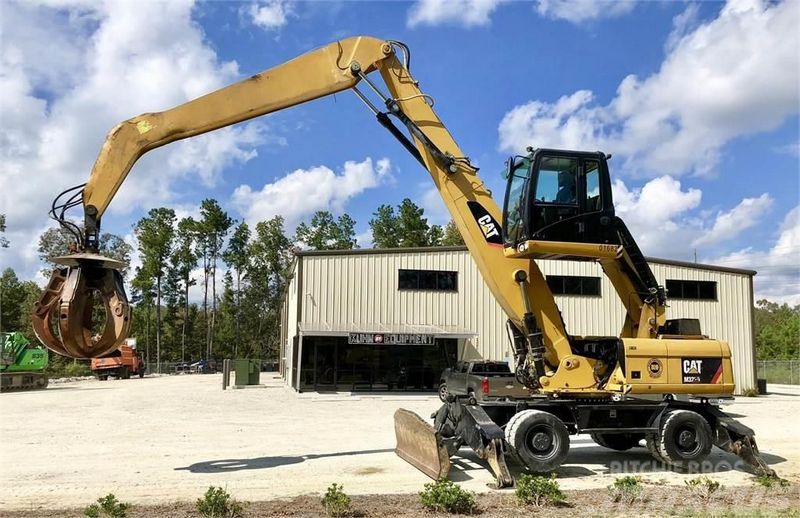

Caterpillar M322D
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 30.94 ft in (9430 mm) |
| Shipping Height Of Unit | 10.7 ft in (3260 mm) |
| Max Cutting Height | 34.65 ft in (10560 mm) |
| Max Loading Height | 22.74 ft in (6930 mm) |
| Max Reach Along Ground | 31.47 ft in (9590 mm) |
| Max Vertical Wall Dig Depth | 14.51 ft in (4420 mm) |
| Max Digging Depth | 19.66 ft in (5990 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom / stick 2.2m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.98 ft in (9440 mm) |
| Shipping Height Of Unit | 10.6 ft in (3230 mm) |
| Max Cutting Height | 34.85 ft in (10620 mm) |
| Max Loading Height | 23.53 ft in (7170 mm) |
| Max Reach Along Ground | 32.26 ft in (9830 mm) |
| Max Vertical Wall Dig Depth | 14.6 ft in (4450 mm) |
| Max Digging Depth | 20.61 ft in (6280 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom / stick 2.5m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.67 ft in (3250 mm) |
| Shipping Length Of Unit | 30.94 ft in (9430 mm) |
| Max Cutting Height | 35.86 ft in (10930 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 33.57 ft in (10230 mm) |
| Max Vertical Wall Dig Depth | 15.85 ft in (4830 mm) |
| Max Digging Depth | 21.92 ft in (6680 mm) |
| Boom/Stick Option (Mex) 3 | VA Boom / stick 2.9m |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.83 ft in (3300 mm) |
| Shipping Length Of Unit | 31.67 ft in (9650 mm) |
| Max Cutting Height | 31.73 ft in (9670 mm) |
| Max Loading Height | 20.67 ft in (6300 mm) |
| Max Reach Along Ground | 31.89 ft in (9720 mm) |
| Max Vertical Wall Dig Depth | 14.7 ft in (4480 mm) |
| Max Digging Depth | 18.94 ft in (5770 mm) |
| Boom/Stick Option (Mex) 4 | One-piece Boom / stick 2.2m |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Overall Width - Outriggers Down | 13 ft in (3960 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Upper Structure Clearance | 4.3 ft in (1310 mm) |
Undercarriage
| Ground Clearance | 1.25 ft in (381 mm) |
| Minimum Turning Radius - Standard Axle - End Of Va Boom | 25.5 ft in (7.78 m) |
| Minimum Turning Radius - Standard Axle - End Of One-Piece Boom | 30.5 ft in (9.3 m) |
| Minimum Turning Radius - Standard Axle - Outside Of Tire | 22 ft in (6.71 m) |
| Oscillation Axle Angle | 9 degrees |
Engine
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C6.6 Acert |
| Gross Power | 173 hp (129.1 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 403 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 553.2 lb ft (750 Nm) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 165 hp (123.1 kw) |
| Net Power - 80/1269/Eec | 165 hp (123.1 kw) |
| Engine Model | Cat C6.6 with ACERT Technology |
| Maximum Torque - 1,400 Rpm | 553 lb ft (749.8 Nm) |
| Ratings | 2000 rpm |
| Net Power - 2,000 Rpm - Iso 9249 | 165 hp (123.1 kw) |
Operational
| Operating Weight | 49604.1 lb (22500 kg) |
| Fuel Capacity | 101.8 gal (385 L) |
| Cooling System Fluid Capacity | 8.8 gal (33 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Front Diff Fluid Capacity | 3 gal (11 L) |
| Rear Diff Fluid Capacity | 3.9 gal (14.5 L) |
| Hydraulic System Fluid Capacity | 88.5 gal (335 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Type | Piston |
| Hydraulic Pump Flow Capacity | 92.5 gal/min (350 L/min) |
| Oscillating Axle Angle | 9 degrees |
| Max Steering Angle | 35 degrees |
| Tire Size | 11.00-20 16PR dual |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 41303 lb ft (55999.4 Nm) |
Transmission
| Transmission Type | Gear |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 16 mph (25.8 km/h) |
| Drawbar Pull | 25179 lb (11421.1 kg) |
| Creeper Speed - 2nd Gear | 7.5 mph (12.1 km/h) |
| Forward/Reverse - 1st Gear | 4 mph (6.5 km/h) |
| Creeper Speed - 1st Gear | 2 mph (3.3 km/h) |
| Forward/Reverse - 2nd Gear | 16 mph (25.8 km/h) |
| Maximum Gradeability | 60% |
Tires
| Standard | 1) 11.00-20 (dual pneumatic) |
| Optional | 1) 10.00-20 (dual solid rubber) |
Weights
| Counterweights - Standard | 8598 lb (3900 kg) |
| Dozer Blade | 2028 lb (919.9 kg) |
| Outriggers | 2778 lb (1260.1 kg) |
| Va Boom* - Rear Dozer Only | 43321 lb (19650.1 kg) |
| Va Boom* - Rear Dozer, Front Outriggers | 45966 lb (20849.9 kg) |
| Va Boom* - Front And Rear Outriggers | 46518 lb (21100.3 kg) |
| One-Piece Boom* - Rear Dozer Only | 41888 lb (19000.1 kg) |
| One-Piece Boom* - Front And Rear Outriggers | 45085 lb (20450.3 kg) |
| One-Piece Boom* - Rear Dozer, Front Outriggers | 44533 lb (20199.9 kg) |
| Sticks - Short (2200 Mm) | 1433 lb (650 kg) |
| Sticks - Medium (2500 Mm) | 1543 lb (699.9 kg) |
| Sticks - Long (2900 Mm) | 1720 lb (780.2 kg) |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.1 yd3 (1.6 m3) |
Hydraulic System
| System | 92 gal (US) |
| Tank Capacity | 58 gal (219.6 L) |
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 5076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5439 psi |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2683 psi |
| Maximum Pressure - Travel Circuit | 5076 psi |
| Maximum Flow - Implement/Travel Circuit | 92 gal/min |
| Maximum Flow - Swing Mechanism | 30 gal/min |
| Maximum Flow - Auxiliary Circuit - High Pressure | 55 gal/min |
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13 gal/min |
| Maximum Pressure - Swing Mechanism | 4931 psi |
Service Refill Capacities
| Fuel Tank | 102 gal (386.2 L) |
| Engine Crankcase | 4 gal (15.2 L) |
| Final Drive | 0.7 gal (2.7 L) |
| Powershift Transmission | 0.7 gal (2.7 L) |
| Front Steering Axle - Differential | 2.9 gal (11 L) |
| Rear Axle - Housing (Differential) | 3.7 gal (14.1 L) |
| Cooling | 9.8 gal (37.1 L) |
Drive
| Maximum Travel Speed | 15.6 mph (25.2 km/h) |
Sound Levels
| Exterior Sound | Exterior Sound |
Working Ranges
| Maximum Digging Depth | 22 ft in (6.7 m) |
| Maximum Reach - Ground Level | 33.9 ft in (10.4 m) |
Bucket Specifications
| Bucket Capacities | 0.44 to 1.57 m3 (0.57 to 2.05 yd3) |
Cab/Rops/Fogs
| Standards | Standards |
