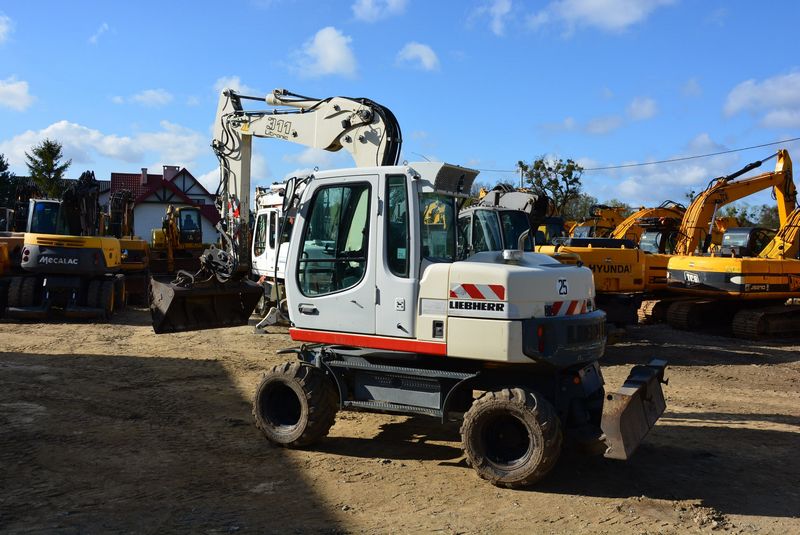

Liebherr A311
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.55 ft in (8700 mm) |
| Max Cutting Height | 21.82 ft in (6650 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 27.56 ft in (8400 mm) |
| Max Digging Depth | 13.46 ft in (4100 mm) |
| Boom/Stick Option (Mex) 1 | Hydro. Adjustable Boom 2350mm / Stick 2050mm |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M2012 |
| Net Power | 91 hp (67.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | Direct Injection Turbo-charged |
Operational
| Fuel Capacity | 56.8 gal (215 L) |
| Operating Weight | 25573.7 lb (11600 kg) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Type | Variable Displacement, Swashplate Pump |
| Hydraulic Pump Flow Capacity | 58.2 gal/min (220 L/min) |
| Tire Size | 9.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | lb ft (30 Nm) |
Transmission
| Transmission Type | Oversized two speed power shift transmission and integrated protection with additional creeper speed |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
