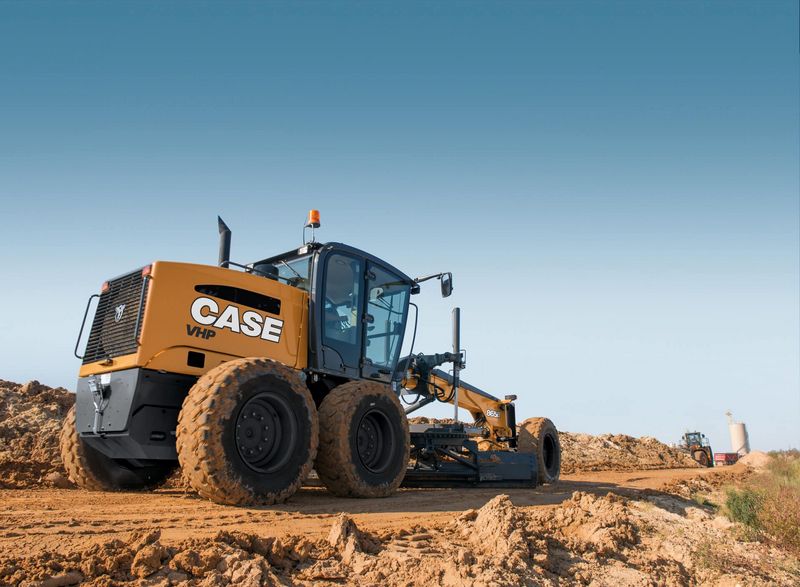

Case 865B
Browse All Case or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28 ft in (8534 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Tandem Axle Wheelbase | 5.23 ft in (1594 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Tread | 82.92 in (2106 mm) |
| Turning Radius Front W/Bucket | 23.79 ft in (7250 mm) |
| Wheel Base To Center Of Tandem | 2.62 ft in (797 mm) |
| Height To Top Of Isomount Cab | 10.34 ft in (3150 mm) |
Engine
| Emission Tier Level | Tier 3 Certified |
| Torque | 686 lb ft (930 Nm) |
| Engine Make | FPT |
| Engine Model | F4HE9687C |
| Max Power | 220 hp (164.1 kw) |
| Displacement | 409 cu in (6.8 L) |
Operational
| Max Operation Weight - Total | 33796.9 lb (15330 kg) |
| Tire Size | 610 mm |
Transmission
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 27.9 mph (44.8 km/h) |
Moldboard
| Moldboard Length | 14 ft in (4267 mm) |
| Moldboard Height | 23.7 in (600 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Blade Down Pressure | 18518.9 lb (8400 kg) |
Hydraulic System
| Pump Flow | 49.2 gal/min (186 L/min) |
